The AP intelligently enables the wireless clients to connect to
5 GHz wireless network in priority, ensuring load balancing at dual bands and improving the wireless performance.
Precise RF signal optimization, a guarantee of 2-room WiFi coverage without dead zone
With the independent RF chip, the AP separates the power supply part and WiFi signal processing part, completely avoiding the interference of the power magnetic field on the WiFi signal. Boosted by the high-performance antenna, the AP can cover two side-by-side hotel rooms with full WiFi.
Standard PoE power supply, an assurance of easy AP upgrade and installation
The AP can be powered by the PoE devices. With an Ethernet cable, the AP can be powered and transmit data at the same time. The maximum power supply distance of up to 100 meters enables the AP to be installed easily in hotels or your houses without breaking the existing power line layout.
Supporting unified configuration and management
The AP supports the unified management and configuration of IP-COM ACs and enterprise routers, enabling the network administrators to manage, configure and monitor all APs conveniently.
Multicolor decals for colorful AP panels
Up to 1167 Mbps dual-band concurrent wireless speed
86 mm x 86 mm in-wall design, ultra-thin shell and fashionable appearance
Standard PoE power supply supported, making installation easier
Central management of IP-COM full system AC and enterprise router supported
Product Information
|
Product Model
|
W36AP
|
|

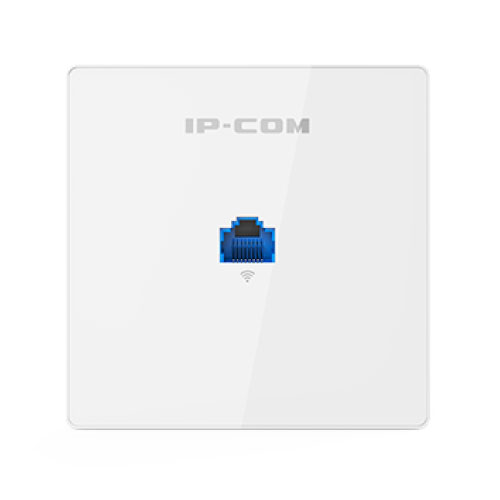

Product Appearance
|
In-wall access point
|
|
Product Dimension
|
86 x 86 x 32 mm
|
|
Application Scenarios
|
WiFi coverage for large-sized apartments/villas/hotel rooms
|
Hardware Specifications
|
Working Frequency Band
|
2.400 – 2.4835 GHz, 5.15 0 – 5.250 GHz
|
|
Wireless Protocol Standard
|
IEEE 802.11a/b/g/n/ac
|
|
2.4 GHz Access Rate
|
1-300Mbps
|
|
5 GHz Access Rate
|
6-867Mbps
|
|
2.4 GHz and 5 Maximum Connections
|
128
|
|
Ethernet Port
|
2 10/100/1000 Base TX ports
|
|
Reset Button
|
1 reset button
|
|
LED Indicators
|
1 x SYS LED indicator and 1 x LAN LED indicator
|
|
Power Consumption of the Whole Device
|
Full load 7.8 W
|
|
Power Supply Mode
|
IEEE 802.3af
|
|
2.4 GHz and 5 GHz Antenna Gain
|
4 dBi
|
|
2.4 GHz Output Power
|
20+/-1.5 dBm
|
|
5 GHz Output Power
|
16+/-1.5 dBm
|
Software Specifications
|
Operating Mode
|
AP, Client + AP
|
|
SSID Hide
|
Supported
|
|
2.4 GHz SSID Number
|
8
|
|
5 GHz SSID Number
|
4
|
|
WEP
|
64/128 bit encryption supported
|
|
WPA-PSK
|
AES/TKIP
|
|
WPA2-PSK
|
AES/TKIP
|
|
WPA- WPA2
|
Supported
|
|
supported
|
Wireless Access Control MAC address-based filtering
TX Power Adjustment
SSID Isolation
AP Isolation
Wireless User Access Limit
Weak Signal Client Access Limit
WMM
5 GHz Band Navigation (5 GHz Priority)
Multicast to Unicast
Access Control
VLAN and SSID Binding
Timed Reboot
Led Control
Cyclic Reboot
Device Management
Uplink Detection
Hardware Watchdog
Remote Log Management
Firmware Upgrade
Reboot Local reboot and rebooted by AC
Reset Local reset and reset by AC
Backup
Restore
|
|
| Working Environment |
Operating Temperature -10°C to 45°C
Operating Humidity 10% - 90% RH (non-condensing)
Storage Temperature -30°C to 70°C
Storage Humidity 10% - 90% RH (non-condensing)
|
