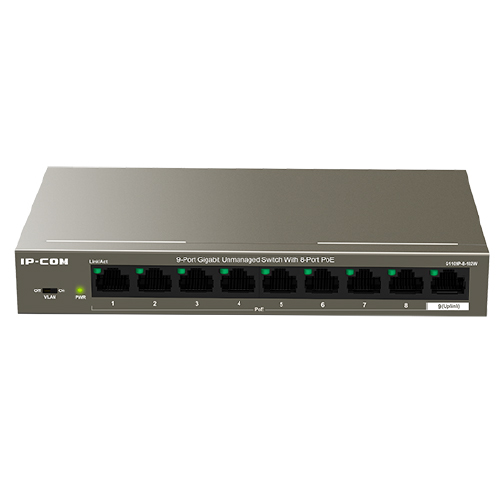

G1109P-8-102W 9-Port Gigabit Desktop Switch with 8-Port PoE
G1109P-8-102W is the gigabit unmanaged lightning protection switch IP-Com specifically developed for requirement of building Gigabit WLAN and HD camera monitor network.With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for all port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically. Through conventional Cat 5e twisted-pair cable, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, easier configure, flexible extend network without being limited by the power line layout, plug and play, helping SMB,hotel, shopping mall,school to build high-security and reliability network of wireless cover and HD monitor.
Born for Small and Medium-sized
HD IP Surveillance Projects
Excellent Lightning Protection
The switch supports 6 kV lightning protection for all port, protecting the switch from thunderstorms and making it more stable.
Outstanding PoE Power Supply
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device.
What's Special for TEG1109P-8-102W :
Enjoy Super HD Video Screen
2Mb built-in packet buffer outstand in comparison, ensuring smooth transmission of large files and HD videos even when HD IP cameras of 500W are working simultaneously.
Integrated with Smart Power Management
Chip Makes the Switch Get Rid of Overload
It includes chips with smart power management function and integrated professional chip control algorithm,which can accurately calculate the output power. When the power of the receiving equipment exceeds the rated power (92W) of the PoE switch, the low priority port will automatically power off to avoid the over-run of the equipment and prolong the service life of the equipment.
Hardware
|
Network standards
|
IEEE 802.3 IEEE 802.3u IEEE 802.3ab?IEEE 802.3x IEEE 802.3af IEEE 802.3at
|
|
LED Indicator
|
9* Link/Ack LED indicators
1 * Power LED indicator
|
|
Interfaces
|
8*10/100/1000 Base-T Ethernet Ports(Data/Power)
1*10/100/1000 Base-T Ethernet Ports(Data)
|
|
Transmission media
|
Recommended: CAT5/5e UTP or better
|
|
Fan quantity
|
N/A
|
|
Dimension
|
177.5mmx104.0mmx26.0mm
|
|
Level of protection
|
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
|
|
Forwarding mode
|
Store-and-forward
|
|
Switch capacity
|
18 Gbps
|
|
Packet forwarding rate
|
13.4Mpps
|
|
Buffer
|
2M
|
|
MAC address table
|
16K
|
|
Jombo frame
|
N/A
|
|
PoE budget
|
Single port: AF: 15.4W, AT: 30W
Whole device: 92W
|
|
Power consumption
|
/
|
|
Input voltage
|
100-240V AC 50/60Hz
51V /2.0A DC(Power Adapter Output )
|
|
Mounting
|
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
|
|
Environment
|
Operating Temperature: 0~45
Storage Temperature: -40~70
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|
Certification
|
FCC CE RoHS
|
Software
|
Funtions
|
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
|
