Ip-Com 8 Port Gb L3 POE 130W 1C/1SFP 6KV

Ip-Com 8 Port Gb L3 POE 130W 1C/1SFP 6KV

Item #
3 Year / 30 Day OTC
Retail Box
If out of stock
5 to 7 Days
Add On Products
Product Description

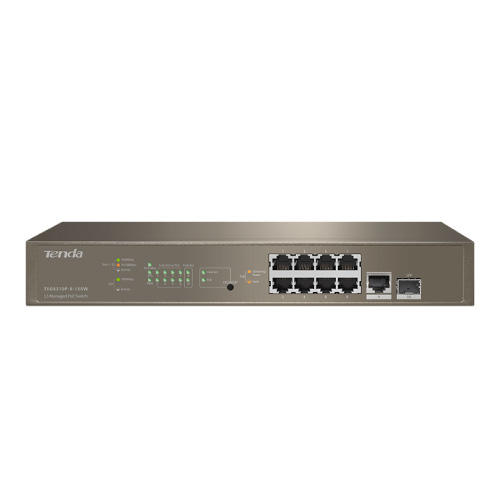

G5310P-8-150W   L3 Managed PoE Switch

Layer-3 Routing Engine,High-Efficiency Fast Forwarding
Supports Layer 3 www routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing and forwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission, there is no need to go through a router, and the forwarding speed is faster!

Map Visualization
It supports auto discovery of ONVIF based IP camera and access point, and also supports automatically topology generate.

130W Smart PoE Power Supply
It uses a new 150W built-in PoE power supply, and the maximum output power of PoE is 130W. At the same time, the built-in PSE chip with intelligent power management function can monitor the temperature of the chip and customize the PoE power supply based on the time period. The device will automatically turn on / off the PoE function during working hours and idle time to minimize energy consumption and extend the service life of the device.

Flexible QoS, Precise Traffic Control
The G5310P-8-150W supports three QoS scheduling modes (SP, SWRR, WRR) for more accurate traffic control. After the QoS function is enabled, the traffic in the network will be precisely controlled according to the priority of the label. It will prioritize important traffic and reduce the proportion of data flows that occupy a large amount of insignificant traffic in the condition of limited bandwidth,in order to better meet the current transmission needs.

Supports Layer 2 And Layer 3 ACL,For More Secure Access
Support strict access control based on MAC address or IP address, which can filter the corresponding data packets to enhance user network security. It can be used for network deployment of government, medical and other units.

Multiple Attack Defenses, Multiple Securit Blessings
Support IP / MAC / ARP filtering / DoS attack protection, enable attack protection according to networking requirements, bring multiple layers of protection to user network security, and ensure network stability and failure-free.

Network standards
IEEE802.3? IEEE802.3u? IEEE802.3ab? IEEE802.3z? IEEE802.3x? IEEE802.3af/at? IEEE802.1p?IEEE802.1q? IEEE802.1w? IEEE802.1d? IEEE802.1s

LED Indicator
1*Link/Act or PoE LED indicator
1*Link/1*Link/Act mode converting LED indicator
1*PoE mode converting LED indicator
1*PoE Max LED indicator
1*Power LED indicator
1*SYS LED indicator

8*10/100/1000 Base-T Ethernet ports (Data/Power)
1*10/100/1000 Base-T Ethernet ports (Data)
1*1000 Base-X SFP ports (Data)

Transmission media
Recommended: CAT5/5e UTP or better

Fan quantity

Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Switch capacity

Packet forwarding rate


MAC address table

Jombo frame

PoE power supply management

PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 130W

Input voltage
100-240V AC 50/60Hz

Power consumption
Full load: <160W
Empty load: <12W


Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Energy Efficient

Operating temperature: 0°C - 45?
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing


L3 Features
VLAN-based routing
IPv4 static routing adding
Static ARP adding/deleting
ARP aging time configuration

PoE power supply management
Supports port PoE configuration and power supply with priority
Supports PoE over-temperature protection
Supports PoE scheduled management
Supports intelligent management and PoE-powered device detection
(port status, power assignment and PoE-powered device status)

Security features
ARP receiving limit
Unknown MAC address discard
DoS attack defense
802.1x security authentication
Radius security authentication

VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and Hybrid

DHCP Server
DHCP Server
DHCP Relay
DHCP Snooping
Supports Option 82 policy configuration

Port aggregation
Static aggregation
LACP dynamic aggregation

Spanning tree
IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statistics

IGMP Snooping V1/V2/V3
Supports port fast leave

Port Mirroring
Supports N: 1 port mirroring

Quality of Service
SP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mapping

Supports MAC ACL and IP ACL

Loading and upgrade
Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export

Management and maintenance
Supports Telnet
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/Tracert/Connection Detection
CPU Monitoring and memory monitoring
Local visualization management
