IP-Com 48 PT 100/1000 MNG 2 SFP RM Swch

Product Description

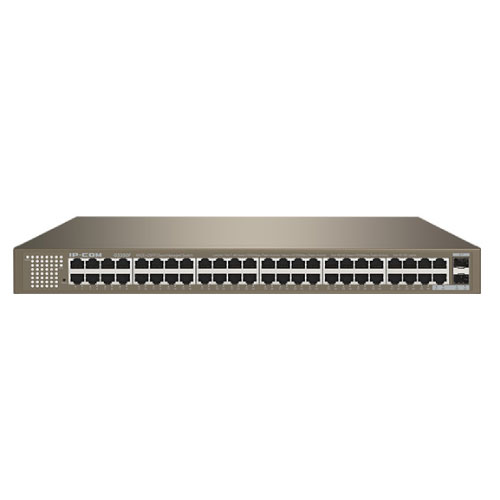

G3350F is a 48GE+2SFP layer-2 cloud managed switch designed by IP-COM for such scenarios with dense network as office network of SMBs and computer room network of campuses. With 48*10/100/1000 Base-T Ethernet ports and 2*1000 Base-X SFP ports, the switch supports cloud platform management, remote App management and local visualization, realizing easy and efficient network maintenance at a lower cost.

•     Compliance with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, and IEEE 802.1p/q/w/d/s standards
•     48 x 10/100/1000 Base-T Ethernet ports; 2 x 100/1000 Base-X SFP ports
•     16K MAC address and MAC address automatic learning
•     12 Mb large buffer
•     Switching capacity: 100 Gbps
•     VLAN, IGMP, QoS, ACL, DHCP Snooping and Telnet supported
•     CloudFi App management and local visualization management supported

Network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
LED indicators	One Link/Act LED indicator for each port One Power LED indicator One SYS LED indicator
Fixed ports	48 x 10/100/1000Base-T Ethernet port 2 x 1000Base-X SFP slot
Lightning protection	Port: 6 kV Power supply: 6 kV
Forwarding mode	Store-and-forward
Switching capacity	100 Gbps
Packet forwarding rate	74.4 Mpps
Switching buffer	12 Mbit
MAC address table	16K
Input voltage	100 - 240V AC 50/60Hz
Dimensions	440 mm * 240 mm * 44 mm(L x W x H)
Environment	Operating temperature: 0°C - 45°C Operating humidity: (10% - 90%)RH, non-condensing Storage temperature: -40°C - 70°C Storage humidity: (5% - 90%)RH, non-condensing
Certificates	CCC, FCC, CE, RoHS
Software features
Security features	Support ARP receiving limit Support discarding unknown MAC addresses Support DoS attack defense Support 802.1x security authentication Support RADIUS authentication
VLAN	Support 4 K VLAN table Support IEEE 802.1q VLAN Support three port modes: Access, Trunk and Hybrid
DHCP	Support DHCP snooping Support Option 82 policy configuration
Port aggregation	Support Static aggregation Support Dynamic aggregation
STP	Support IEEE 802.1d STP (Spanning Tree Protocol) Support IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) Support IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Support edge ports Support BPDU statistics
IGMP	Support IGMP snooping V1/V2/V3 Support fast leave of ports
Port mirroring	Support N: 1 port mirroring
QoS	Support SP (Strict Priority) Support SWRR (Simple Weighted Round Robin) Support WRR (Weighted Round Robin) Support 802.1p port trust mode Support DSCP port trust mode Support a maximum of 8-queue service quality mapping
ACL	Support MAC ACL Support IPv4 ACL
Cloud Management	Support configuration delivery from CloudFi management platform Support CloudFi App management Support log reporting and fault detection Support remote maintenance: reboot, backup, upgrade
Local Visualization	Support discovery of such network devices as routers, switches, APs based on LLDP Support IP camera discovery based on ONVIF protocol Support automatic generation of topology Support local view and main view Support online/offline status detection for devices Support remote IP cameras reboot Support loop alert Support custom device types and device names
Loading and upgrade	Support HTTP upgrade Support Configuration import and export
Management and maintenance	Support Telnet configuration Support SNMP V1/V2/V3 Support web management and maintenance Support system log Support log classification Support NTP Support Ping and Tracert tests Support memory and CPU monitoring
