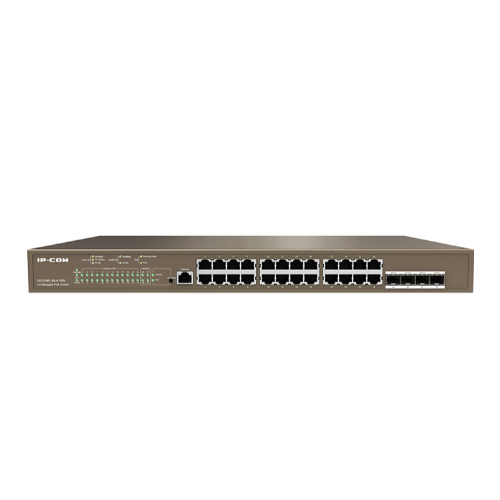

G5328P-24-410W
L3 Managed PoE Switch
Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af/at standards
24 x 10/100/1000 Base-T Ethernet ports (Data/Power), 4 separate 1000 Base-X SFP ports,1 x Console port
16 K MAC address table and MAC address auto-learning
12Mb large buffer
Switching capability: 56Gbps
Supports abundant services, such as static routing based on IPv4, VLAN, IGMP, QoS, ACL, DHCP Snooping, ARP and Telnet
Support IMS cloud management and local visualization management
G5328P-24-410W is an
IP-COM Layer-3 managed
PoE switch. To meet the demand of high-performance access, the switch provides
24 10/100/1000 Mbps Base-T Ethernet ports and 4 separate 1000 Mbps Base-X SFP ports, and a PoE power of up to 370 W. With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium to large networks as enterprises and campuses.
Dual 6 kV professional lightning protectionProvides dual 6 kV port and power lightning protection, and supports multiple protection features, such as PSE short circuit protection, PoE overload protection, power over-temperature and overvoltage protection, and surge current protection.
Layer-3 routing protocolSupports Layer-3 static routing protocol, meeting the demand of the 3-layer networking environment in which Layer-3 networks should be interconnected while Layer-2 networks should be isolated, thus realizing an efficient and fast layer-3 routing forwarding
410 W high-powerOffers 24 gigabit PoE ports complaint with IEEE 802.3af and IEEE 802.3at. With a maximum 370 W PoE output power of the whole switch, and a maximum 30 W PoE output power of a single port, the switch helps provide stable power and data transmission for gigabit WLAN and high definition digital monitoring devices
Sound security featuresSupports IP address filtering, MAC address filtering, ARP filtering, DoS attack defense, and ACL access control list, improving network security
Hardware specifications
|
Standards
|
IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3ad,IEEE802.3z,IEEE802.3x,IEEE802.1p,IEEE802.1q,IEEE802.1w,IEEE802.1d,IEEE802.1s,IEEE802.3af/at
|
|
LED indicators
|
One Link/Act or PoE LED indicator for each port One Link/One Link/Act mode converting LED indicator for each device One PoE mode converting LED indicator for each device One PoE Max LED indicator for each device One Power LED indicator for each device One SYS LED indicator for each device
|
|
Interfaces
|
24 x 10/100/1000 Base-T Ethernet ports (Data/Power) 4 x 1000 Base-X SFP ports (Data)
|
|
Lightning protection
|
Port: 6kV Power: 6kV
|
|
Forwarding mode
|
Store-and-forward
|
|
Switching capability
|
56Gbps
|
|
Packet forwarding rate
|
41.7Mpps
|
|
Buffer
|
12Mbit
|
|
MAC address table
|
16K
|
|
PoE power supply
|
Ports 1 to 24 support IEEE 802.3af/at standard PoE power supply1 2 4 5 +, and 3 6 7 8 -
|
|
Whole switch consumption
|
Whole switch consumption: <410W Maximum PoE output power: 370 W
|
|
Maximum PoE output power
|
|
|
Input voltage
|
AC:100-240V~ 50/60Hz
|
|
Dimensions
|
440 mm x 284 mm x 44 mm(L*W*H)
|
|
Operating environment
|
Operating temperature: 0°C - 45? Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%)RH, non-condensing Storage humidity: (5% - 90%)RH, non-condensing
|
|
Certificates
|
CCC?FCC?CE?RoHS
|
Software specifications
|
PoE power supply management
|
PoE power supply management Supports port PoE configuration and power supply with priority Supports PoE over-temperature protection Supports PoE scheduled management Supports intelligent and graphical management and PoE-powered device detection (port status, power assignment and PoE-powered device status)
|
|
Security features
|
Supports ARP receiving limit Supports unknown MAC address discard Supports DoS attack defense Supports 802.1x security authentication Supports Radius authentication
|
|
VLAN
|
Supports IEEE 802.1Q VLAN Supports VLAN Layer-3 interfaces Supports three port modes: Access, Trunk and Hybrid
|
|
DHCP
|
Supports DHCP Relay Supports DHCP Snooping Supports Option 82 policy configuration
|
|
L3 Routing
|
Supports VLAN-based routing Supports IPv4 static routing Supports static ARP
|
|
Port aggregation
|
Supports static aggregation Supports LACP dynamic aggregation
|
|
Spanning tree
|
Supports IEEE 802.1d STP (Spanning Tree Protocol) Supports IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) Supports IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Supports edge port Supports BPDU statistics
|
|
Multicast
|
Supports IGMP Snooping V1/V2/V3 Supports port fast leave
|
|
Port Mirroring
|
Supports N: 1 port mirroring
|
|
QoS
|
Supports SP (Strict Priority) Supports SWRR (Simple Weighted Round Robin) Support WRR (Weighted Round Robin) Supports 802.1p port trust mode Supports DSCP port trust mode Supports a maximum of 8 queue service quality mapping
|
|
ACL
|
Supports MAC ACL Supports IP ACL
|
|
Loading and upgrade
|
Supports FTP/TFTP/HTTP upgrade Supports configuration import and export
|
