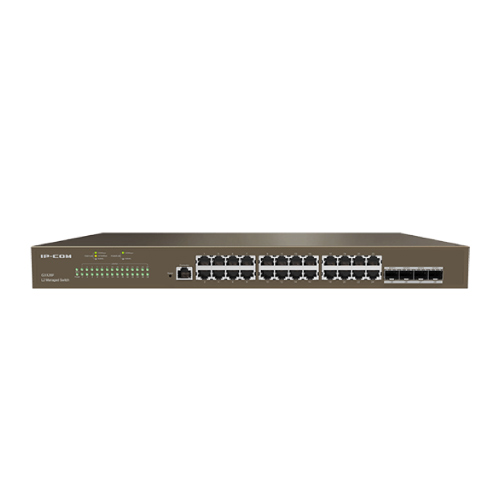

G3328F
L2 Cloud management switch
Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, and IEEE 802.1s standards.
24 x 10/100/1000Base-T Ethernet ports, 4 x Independent 1000M SFP ports, 1 x Console port
16 K MAC address table and MAC address auto-learning
12Mb large buffer
Switching capability: 56Gbps
Supports layer-2 service features, such as VLAN, IPv4 ACL, QoS, IGMP, DHCP Snooping, SNMP and Telnet
Support IMS cloud management and local visualization management
G3328F is an IP-COM layer-2 managed switch. Equipped with a developed hardware structure and software platform, this switch features a powerful processing capacity, a complete security protection mechanism, and various means for maintenance and management. With these advantages, it fully meets the demands of high-density connections and high-performance aggregation, ideal for the aggregation layer or core layer of such medium to large networks as enterprises and hotels.
Mirror backup
The switch features two system files that backup each other, guaranteeing the proper startup and stable operation of the system.
Fiber optic aggregation
4 independent SFP ports support fiber optic aggregation functionality, meeting the demands of long-distance fiber optic networking.
Cloud management
The IMS cloud platform offers remote management, configuration and maintenance functions, such as fault detection and troubleshooting, log reporting and network status monitoring, guaranteeing the stable operation of the network.
Map visualization
The system can generate the network topology automatically. It supports IP camera discovery based on ONVIF protocol and network device discovery based on LLDP, as well as online/offline status detection for all devices in the network, which improves the LAN operation and maintenance efficiency and also reduces the maintenance cost.
Hardware specifications
|
Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
|
|
LED indicators
|
LED indicators One Link/Act LED indicator for each port
One Power LED indicator for each device
One SYS LED indicator for each device
|
|
Interfaces
|
24 x 10/100/1000Base-T Ethernet ports
4 x 1000Base-X SFP ports
1 x Console port
|
|
Lightning protection
|
Port: 6kV
Power: 6kV
|
|
Forwarding mode
|
Store-and-forward
|
|
Switching capability
|
56Gbps
|
|
Packet forwarding rate
|
41.7Mpps
|
|
Buffer
|
12Mbit
|
|
MAC address table
|
16K
|
|
Input voltage
|
100-240V~ 50/60Hz
|
|
Dimensions(L*W*H)
|
440 mm x 179.6 mm x 44 mm
|
|
Operating environment
|
Operating temperature: 0°C - 45?
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing
|
|
Certificates
|
CCC?FCC?CE?RoHS
|
Software specifications
|
Security features
|
Supports ARP receiving limit
Supports discarding unknown MAC addresses
Supports DoS attack defense
Supports 802.1x security authentication
Supports RADIUS authentication
|
|
VLAN
|
Supports 4K VLAN table
Supports IEEE 802.1Q VLAN
Supports three port link types: Access, Trunk and Hybrid
|
|
DHCP
|
Supports DHCP Snooping
Supports Option 82 policy configuration
|
|
Port aggregation
|
Supports static aggregation
Supports LACP dynamic aggregation
Supports a maximum of 32 aggregation groups and a maximum of 8 member ports in each group
|
|
Spanning tree
|
Supports IEEE 802.1d STP (Spanning Tree Protocol)
Supports IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
Supports IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge ports
Supports BPDU statistics
Supports BPDU Guard, BPDU Filter
Supports Root Guard, Loop Guard
Supports Loopback-detection
|
|
Multicast
|
Supports IGMP Snooping V1/V2/V3
Supports port fast leave
|
|
Port Mirroring
|
Supports N: 1 port mirroring
|
|
QoS
|
Supports SP (Strict Priority)
Supports SWRR (Simple Weighted Round Robin)
Supports WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mapping
Supports Tail Drop
Supports storm suppression
Supports port speed limit
|
|
ACL
|
Supports MAC ACL
Supports IPv4 ACL
|
|
Loading and upgrade
|
Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export
|
|
Cloud management
|
Supports configuration delivery from IMS cloud platform
Supports log reporting and fault detection
Supports remote maintenance: reboot, backup, upgrade
|
|
Local visualization management
|
Supports router, switch, AP, IP camera discovery
Supports automatic generation of topology
Supports online/offline status detection for devices
Supports remotely rebooting the IP camera
|
|
Management and maintenance
|
Supports Telnet configuration
Supports Console port configuration
Supports SNMP V1/V2/V3
Supports WEB UI management and maintenance
Supports Ping/Tracert Detection
|
