IP-Com 16port Gb Mini Switch 6Kv Rck/Dsk

Product Description

Dedicated for security surveillance and SMEs

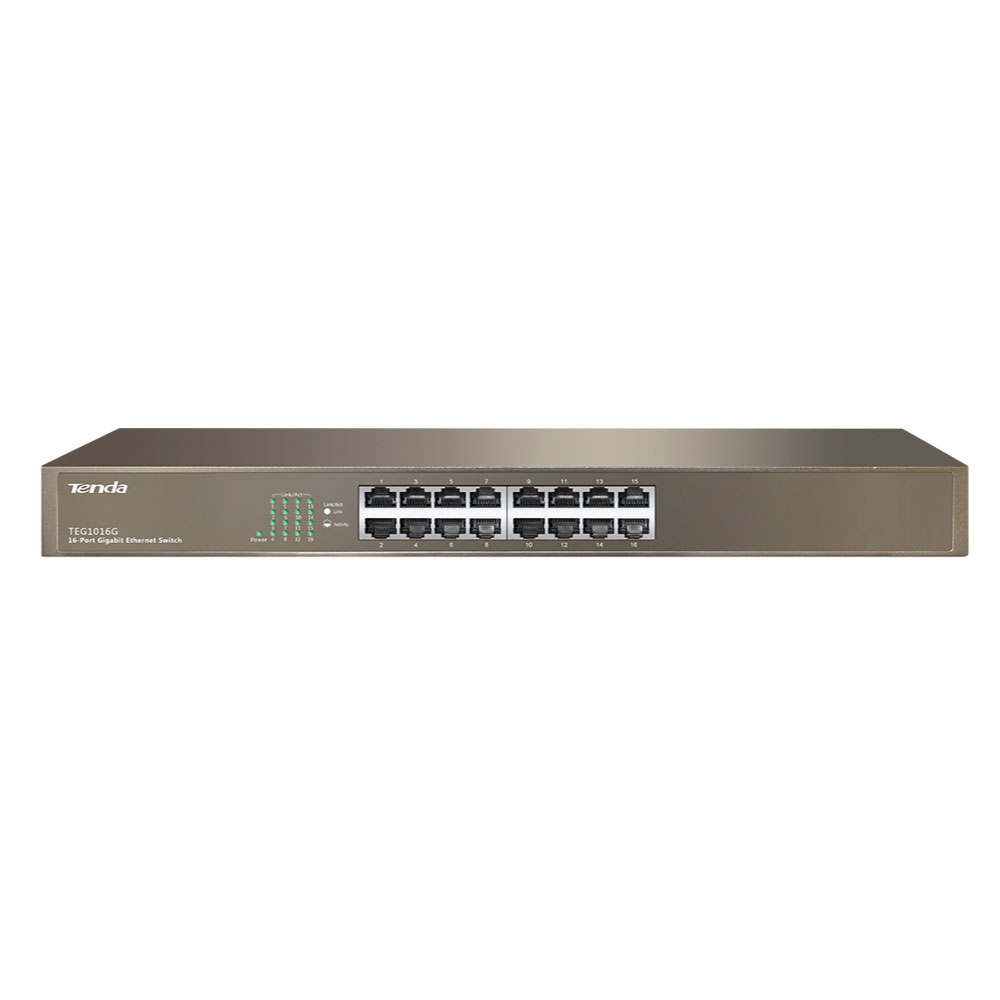

16-Port Gigabit Ethernet Switch G1016G

Stable connection for 7*24
16*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.

Excellent lightning protection of ports
Professional integrated lightning protection circuit enables all the 16 ports to provide IV-class (6 kV in common mode) lightning protection, effectively decreasing the damage rate to the ports by lightning surge.

Professional lightning protection for power supply
The built-in power supply module is designed with enhanced lightning protection, which can withstand 6 kV lightning surge, 3 times higher than other ordinary switches, effectively protecting the switch from being damaged by adverse thunderstorm.

Innovative design
Full steel housing and plating through holes in three faces allow higher-efficient heat dissipation; fanless design ensures the noiselessness and dust free, harmoniously fitting into the offices; 19-inch size makes it mountable both on desktop and rack and plug and play function makes it easy for use.

Hardware
Network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
LED indicators	1* Power,16* Link/Act
Interfaces	16*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Transmission media	Recommended: CAT5/5e UTP or better
Fan quantity	N/A
Dimensions(L*W*H)	440.0mmx179.0mmx44.0mm
Material	Metal
Level of protection	Lightning protection for uplink ports: 6KV Lightning protection for power: 6KV ESD: Air discharge: ±10kV Contact discharge: ±8kV
Forwarding mode	Store-and-forward
Switch capacity	32Gbps
Packet forwarding rate	23.80Mpps
Buffer	2Mb
MAC address table	8K
Jombo frame	N/A
Power	Input: 100-240V AC 50/60Hz
Power consumption	Max:<12W
Mounting	Desktop mounting: support Wall mounting: support Rack mounting : support
Environment	Operating temperature: 0°C - 45? Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing
Certificates	CE, FCC, RoHS
Software
Protocol	CDMA/CD
MAC address learning	Auto-Learning and Auto-Aging
Function	plug-and-play
