Intellinet SFP Fiber SX (LC) MM

Intellinet SFP Fiber SX (LC) MM

Item #
NLSFSXIN
Brand
Intellinet
Model
545006

Color
Warranty
Lifetime
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description

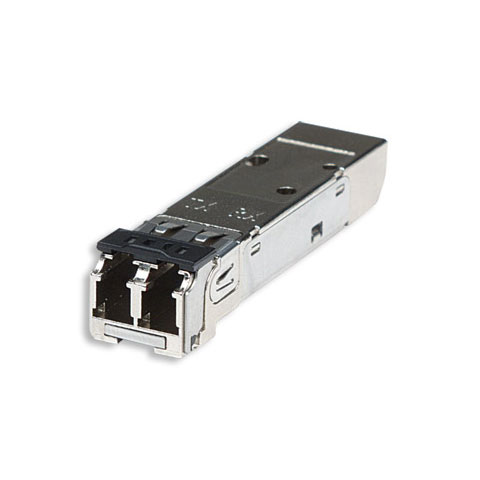

Gigabit Ethernet SFP Mini-GBIC Transceiver: 1000Base-SX (LC) Multi-Mode Port, 550 m
  • Data transfer rate: 1000 Mbps
  • One 1000Base-SX multi-mode Fiber LC duplex port
  • Distance support: up to 550 m (50/125 µm cable) or 220 m (62.5/125 µm cable)
  • Compliant with SFP Transceiver MSA specification
  • Wavelength: 850 nm
  • SFP standard form factor
  • Supports hot-plugging
  • Lifetime Warranty

    Special Features
  • 1000Base-SX (LC) multi-mode port, 550 m

    Specifications

    Standards
  • IEEE 802.3z (Fiber Optic Gigabit Ethernet)

    General
  • Media support:
    - 1000Base-SX multi-mode 50/125 µm Fiber
    - 1000Base-SX multi-mode 62.5/125 µm Fiber
  • Connector: Fiber LC duplex port, 1000Base-SX
  • Distances:
    - 550 m (50/125 µm Fiber cable)
    - 220 m (62.5/125 µm Fiber cable)
  • Wavelength: 850 nm
  • Fiber power budget
    - Maximum TX power: -4 dB
    - Minimum TX power: -9 dB
    - Sensitivity: -17 dB
    - Power budget: 8 dB
  • Design: SFP (small form factor pluggable), 1.25 Gbps
  • Certifications: FCC Class A, CE Mark, RoHS

    Power
  • Power requirement: 3.3 V
  • Power consumption: 1.0 Watt (maximum)

    Environmental
  • Dimensions: 55 (L) x 13 (W) x 12 (H) mm (2.2 x 0.5 x 0.5 in.)
  • Weight: 15 g (0.5 oz.)
  • Operating temperature: 0 – 70°C (32 – 158°F)
  • Operating humidity: 10 – 85% RH, non-condensing
  • Storage temperature: -40 – 85°C (-40 – 185°F)

    Package Contents
  • Gigabit Ethernet SFP Mini-GBIC Transceiver
