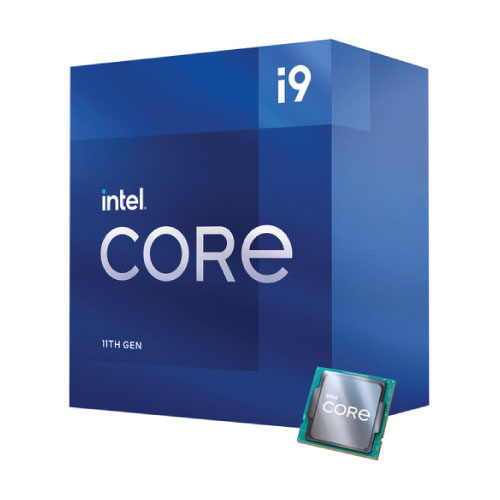

Intel I9-11900 2.5 GHz 16MG SKT 1200 8C
BX8070811900
Intel Core i9-11900 2.5 GHz Eight-Core LGA 1200 Processor into your computer system. Built using a 14nm process, this 11th generation desktop processor features a base clock frequency of
2.5 GHz and a 5.1 GHz Turbo Boost Max 3.0 frequency with 16MB of cache, eight cores, and sixteen threads for fast and reliable performance. The Core i9-11900 also includes support for PCI Express 4.0 and dual-channel
DDR4 memory at 3200 MHz to help run and multitask a variety of demanding applications and games using technologies such as built-in AI acceleration. Performance can be further enhanced by installing Intel Optane memory to cache frequently accessed data.
The i9-11900 features integrated Intel
UHD 750 Graphics driven by the powerful Xe architecture. A thermal solution is included to help maintain optimal temperatures and the processor is backed by a
3-year warranty.
BX8070811900:
8 Cores & 16 Threads
2.5 GHz Clock Speed
5.1 GHz Maximum Turbo Frequency
LGA 1200 Socket
16MB Cache Memory
Integrated Intel UHD 750 Graphics
Dual-Channel DDR4-3200 Memory
Includes Thermal Solution
Supports Intel Optane Memory
11th Generation (Rocket Lake)
|
CPU Model
|
Intel Core i9-11900
|
|
CPU Socket
|
LGA 1200
|
|
Manufacturing Process
|
14 nm
|
|
Maximum CPU Configuration
|
1S
|
|
Maximum Number of PCIe Lanes
|
20 (Revision 4.0)
|
|
Unlocked
|
No
|
|
Number of Cores
|
8
|
|
Number of Threads
|
16
|
|
Base Clock Speed
|
2.5 GHz
|
|
Maximum Boost Speed
|
5.1 GHz
|
|
L3 Cache
|
16 MB
|
|
Memory Maximum Capacity
|
128 GB
|
|
Memory Support
|
DDR4 2933, 3200 MHz
|
|
ECC Memory
|
No
|
|
Channel Architecture
|
Dual Channel
|
|
Maximum Memory Bandwidth
|
50 GB/s
|
|
Optane Memory Support
|
Yes
|
|
Thermal Design Power (TDP)
|
65 W
|
|
Included Thermal Solution
|
PCG 2019C
|
|
Maximum Temperature
|
212°F / 100°C
|
|
Thermal Monitoring Technologies
|
Yes
|
|
AES Support
|
Yes
|
|
Extension
|
AVX 2.0, AVX-512, SSE 4.1/4.2
|
|
Instruction Set
|
64-Bit
|
|
Virtualization
|
Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
|
|
DMI
|
DMI3 (8 GT/s)
|
|
vPro Support
|
No
|
|
Performance Technologies
|
Deep Learning Boost, Gaussian and Neural Accelerator 2.0, Hyper-Threading, SpeedStep, Stable Image Platform Program, Thermal Velocity Boost, Turbo Boost 2.0, Turbo Boost Max 3.0
|
|
Security Technologies
|
BIOS Guard, Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, OS Guard, Secure Key, Trusted Execution Technology
|
|
Video Technologies
|
Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
|
|
Integrated Graphics
|
Graphics Chipset Intel UHD Graphics 750
Maximum Resolution Support 5120 x 3200 at 60 Hz
Supported APIs DirectX: 12
OpenGL: 4.5
Number of Displays 2
Maximum Shared Video Memory 64 GB
Output Support DisplayPort, HDMI
Base Clock Speed 350 MHz
Maximum Boost Speed 1.3 GHz
|
|
Packaging Info
|
Package Weight 0.69 lb
Box Dimensions (LxWxH) 4.7 x 4.7 x 2.7"
|
