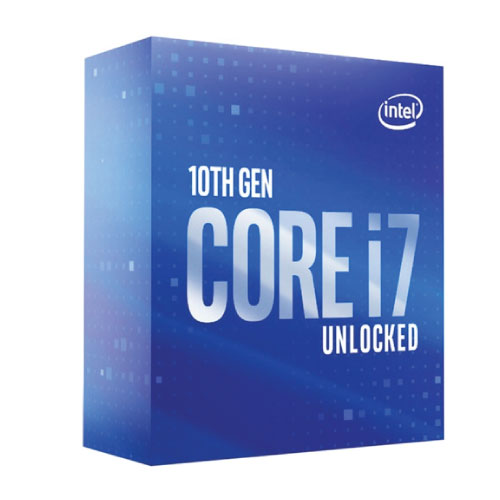

Intel I7-10700K 3.8 GHz 16MG SKT 1200 8C

Product Description

i7-10700K 3.8 GHz Eight-Core LGA 1200 Processor from Intel has a base clock speed of 3.8 GHz and comes with features such as Intel Optane Memory support, Intel vPro technology, Intel Boot Guard, Intel VT-d virtualization technology for directed I/O, and Intel Hyper-Threading technology. With Intel Turbo Max 3.0, the maximum turbo frequency this processor can achieve is 5.1 GHz. Additionally, this processor features 8 cores with 16 threads in an LGA 1200 socket, has 16MB of cache memory, and 16 PCIe lanes. Having 8 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 16 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports 128GB of dual-channel 2933 MHz DDR4 RAM and utilizes 10th-generation technology.

8 Cores & 16 Threads
3.8 GHz Clock Speed
5.1 GHz Maximum Turbo Frequency
LGA 1200 Socket
16MB Cache Memory
Intel UHD Graphics 630
Dual-Channel DDR4-2933 Memory
Supports Intel Optane Memory
10th Generation (Comet Lake)

General
CPU Model	Intel Core i7-10700K
CPU Socket	LGA 1200
Manufacturing Process	14 nm
Maximum CPU Configuration	1S
Maximum Number of PCIe Lanes	16 (Revision 3.0)
Unlocked	Yes
Performance
Number of Cores	8
Number of Threads	16
Base Clock Speed	3.8 GHz
Maximum Boost Speed	5.1 GHz
L3 Cache	16 MB
Memory Support
Memory Support	128 GB
Memory Support	DDR4 2933 MHz
ECC Memory	No
Channel Architecture	Dual Channel
Maximum Memory Bandwidth	45.8 GB/s
Power
Thermal Design Power (TDP)	125 W
Included Thermal Solution	None
Thermal Monitoring Technologies	Yes
Technology
AES Support	Yes
Extension	AVX 2.0, SSE 4.1/4.2
Instruction Set	64-Bit
Virtualization	Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
Integrated Graphics
Graphics Chipset	Intel UHD Graphics 630
Maximum Resolution Support	4096 x 2304 at 60 Hz
Supported APIs	DirectX: 12
OpenGL:	4.5
Number of Displays	3
Maximum Shared Video Memory	64 GB
Output	Support    eDP, DisplayPort, HDMI
Base Clock Speed	360 MHz
Maximum Boost Speed	1.2 GHz
Intel
Intel	DMI    DMI3 (8 GT/s) Optane Memory Support    Yes vPro Support    Yes Performance Technologies    Hyper-Threading, SpeedStep, Stable Image Platform Program, Turbo Boost 2.0, Turbo Boost Max 3.0 Security Technologies    Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, OS Guard, Secure Key, Software Guard Extensions, Trusted Execution Technology Video Technologies    Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
Packaging Info	Package Weight    0.185 lb Box Dimensions (LxWxH)    4.4 x 4.2 x 1.7"
