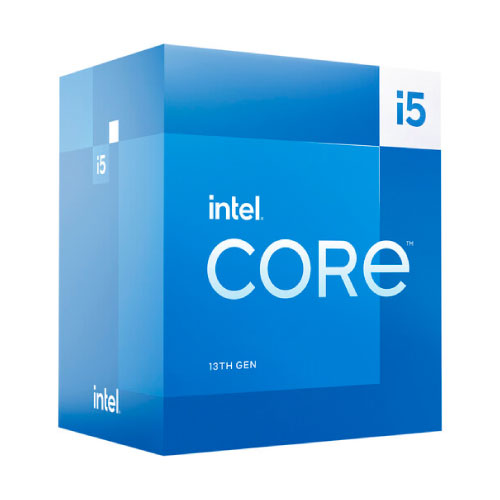

Intel Core i5-13400 2.5 GHz 10-Core LGA 1700 Processor. This 13th generation desktop processor builds upon the Hybrid Core architecture and Intel 7 process by fitting 10 cores— four more than the previous generation— onto a single processor while still supporting the
LGA 1700 socket. Designed to provide power-efficient performance for everyday tasks, the Core i5-13400 features four low-voltage Efficient-cores that handle background tasks for multitasking while the six 2.5 GHz Performance-cores power applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
With 20MB of cache and a 4.6 GHz Turbo frequency, this processor is made to handle a variety of applications. The Core i5-13400 also supports PCI Express 5.0 and dual-channel DDR5 memory at 4800 MHz.
The Core i5-13400 features integrated Intel UHD 730 Graphics. Please note that a thermal solution is NOT included. This processor is backed by a 3-year warranty.
Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks are handled by the processor's Efficient-cores for multitasking.
Intel Thread Director
The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 16 threads are assigned to the right core at the right time.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Integrated Graphics
The integrated Intel UHD 730 Graphics delivers high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
|
General
|
CPU Model Intel Core i5-13400 (13th Gen)
CPU Socket LGA 1700
Manufacturing Process 10 nm
Maximum CPU Configuration 1S
Maximum Number of PCIe Lanes 16 (Revision 5.0)
4 (Revision 4.0)
Unlocked No
|
|
| Performance |
Number of Cores 10 (6 x P-Cores + 4 x E-Cores)
Number of Threads 16
Base Clock Speed P-Core: 2.5 GHz
E-Core: 1.8 GHz
Maximum Boost Speed P-Core Turbo: 4.6 GHz
E-Core Turbo: 3.3 GHz
L3 Cache 20 MB
|
|
Memory Support
|
Maximum Capacity 128 GB
Memory Support DDR5 Up to 4800 MHz
DDR4 Up to 3200 MHz
ECC Memory No
Channel Architecture Dual Channel
Maximum Memory Bandwidth 89.6 GB/s
Optane Memory Support Yes
|
|
Power
|
Thermal Design Power (TDP) 65 W
Included Thermal Solution None
Maximum Temperature 212°F / 100°C
Thermal Monitoring Technologies Yes
|
|
| Technology |
AES Support Yes
Extension AVX 2.0, AVX-512, SSE 4.1/4.2
Instruction Set 64-Bit
Virtualization Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
DMI DMI4 (16 GT/s)
vPro Support No
Performance Technologies Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, Intel Thread Director, SpeedShift, SpeedStep, Turbo Boost 2.0
Security Technologies Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key, Software Guard Extensions, Threat Detection Technology (TDT), Trusted Execution Technology
Video Technologies Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
|
|
Integrated Graphics
|
Integrated Graphics Intel UHD Graphics 730
Maximum Resolution Support 7680 x 4320 at 60 Hz
Supported APIs DirectX: 12
OpenGL: 4.5
OpenCL: 3
Number of Displays 4
Output Support DisplayPort, HDMI
Base Clock Speed 300 MHz
Maximum Boost Speed 1.45 GHz
|
