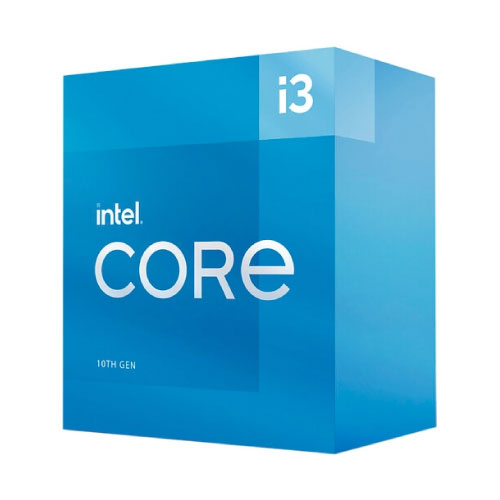

Intel i3-10105 3.7GHz 6MG SKT 1200 4C

Intel i3-10105 3.7GHz 6MG SKT 1200 4C

Item #
CPI3X5
Brand
Intel
Model
BX8070110105

Warranty
3 Year
Condition
Retail Box
If out of stock
While Supplies Last
Add On Products
Product Description
Intel i3-10105 3.7GHz 6MG SKT 1200 4C

4 Cores & 8 Threads
3.7 GHz Clock Speed
4.4 GHz Maximum Turbo Frequency
LGA 1200 Socket

Core i3-10105 3.7 GHz Quad-Core LGA 1200 Processor from Intel has a base clock speed of 3.7 GHz and comes with features such as Intel Optane Memory support, Intel Boot Guard, Intel VT-d virtualization technology for directed I/O, and Intel Hyper-Threading technology. With Intel Turbo Boost 2.0, the maximum turbo frequency this processor can achieve is 4.4 GHz. Additionally, this processor features 4 cores with 8 threads in an LGA 1200 socket, has 6MB of cache memory, and 16 PCIe lanes. Having 4 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 8 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports 128GB of dual-channel 2666 MHz DDR4 RAM and utilizes 10th-generation technology.


CPU Model
Intel Core i3-10105

CPU Socket
LGA 1200

Manufacturing Process
14 nm

Maximum CPU Configuration
1S

Maximum Number of PCIe Lanes
16 (Revision 3.0)

Unlocked
No

Number of Cores
   4

Number of Threads
 8

Base Clock Speed
  3.7 GHz

Maximum Boost Speed
 4.4 GHz

L3 Cache
6 MB

Maximum Capacity
128 GB

Memory Support
DDR4 2666 MHz

Channel Architecture
 Dual Channel

Maximum Memory Bandwidth
 41.6 GB/s

Thermal Design Power (TDP)
65 W

Included Thermal Solution
 PCG 2015C

Maximum Temperature
 212°F / 100°C

Thermal Monitoring Technologies
 Yes

AES Support
 Yes

Security Technologies
Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, OS Guard, Secure Key, Software Guard Extensions

Instruction Set
64-Bit

Virtualization    Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)

Graphics Chipset
 Intel UHD Graphics 630

Maximum Resolution Support
4096 x 2304 at 60 Hz

Supported APIs
    DirectX: 12

Video Technologies
  Clear Video, Clear Video HD, InTru 3D, Quick Sync Video

Number of Displays
  3

Number of Displays
3

Output Support
   eDP, DisplayPort, HDMI

Base Clock Speed
350 MHz

Maximum Boost Speed
1.15 GHz

DMI
DMI3 (8 GT/s)

Optane Memory Support
 Yes

vPro Support
 No

Performance Technologies
Hyper-Threading, SpeedStep, Turbo Boost 2.0
