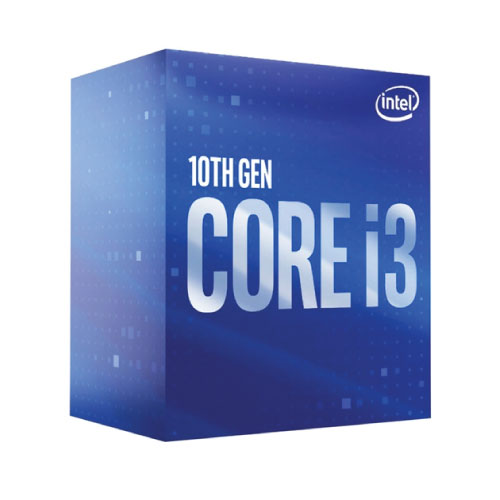

Intel I3-10100 3.6GHz 6MG SKT 1200 4C

Intel I3-10100 3.6GHz 6MG SKT 1200 4C

Item #
CPI3X
Brand
Intel
Model
BX8070110100

Warranty
3 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description

The Core i3-10100 3.6 GHz Quad-Core LGA 1200 Processor from Intel has a base clock speed of 3.6 GHz and comes with features such as Intel Optane Memory support, Intel Boot Guard, Intel VT-d virtualization technology for directed I/O, and Intel Hyper-Threading technology. With Intel Turbo Boost 2.0, the maximum turbo frequency this processor can achieve is 4.3 GHz. Additionally, this processor features 4 cores with 8 threads in an LGA 1200 socket, has 6MB of cache memory, and 16 PCIe lanes. Having 4 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 8 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports 128GB of dual-channel 2666 MHz DDR4 RAM and utilizes 10th-generation technology.

Graphically, the Core i3-10100 uses the integrated Intel UHD Graphics 630 chipset, which has a base frequency of 350 MHz and a dynamic frequency of 1.1 GHz. A thermal solution is included and protection is provided by a limited 3-year warranty.

• CPU Model Intel Core i3-10100
•  CPU Socket: LGA 1200
• Manufacturing Process: 14 nm
• Maximum CPU Configuration: 1S
• Maximum Number of PCIe Lanes :16 (Revision 3.0)
• Unlocked: No
• Number of Cores: 4
• Number of Threads: 8
• Base Clock Speed:3.6 GHz
•  Maximum Boost Speed: 4.3 GHz
• L3 Cache: 6 MB
• Maximum Capacity: 128 GB
• Memory Support: DDR4 2666 MHz
• Maximum Memory Bandwidth: 41.6 GB/s
• Thermal Design Power (TDP): 65 W
• Maximum Temperature 212°F / 100°C
• Thermal Monitoring Technologies: Yes
•  AES Support: Yes
• Extension: AVX 2.0, SSE 4.1/4.2
• Instruction Set: 64-Bit
• Virtualization Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
• Graphics Chipset: Intel UHD Graphics 630
• Maximum Resolution Support: 4096 x 2304 at 60 Hz
• Supported APIs DirectX: 12
OpenGL: 4.5
• Number of Displays: 3
• Maximum Shared Video Memory: 64 GB
• Output Support: eDP, DisplayPort, HDMI
• Base Clock Speed: 350 MHz
• Maximum Boost Speed: 1.1 GHz
• DMI DMI3 (8 GT/s)
• Optane Memory Support: Yes
• vPro Support: No
• Performance Technologies: SpeedStep, Turbo Boost 2.0
• Security Technologies: Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, OS Guard, Secure Key, Software Guard Extensions
• Video Technologies: Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
• 4.6 x 4 x 2.8"
