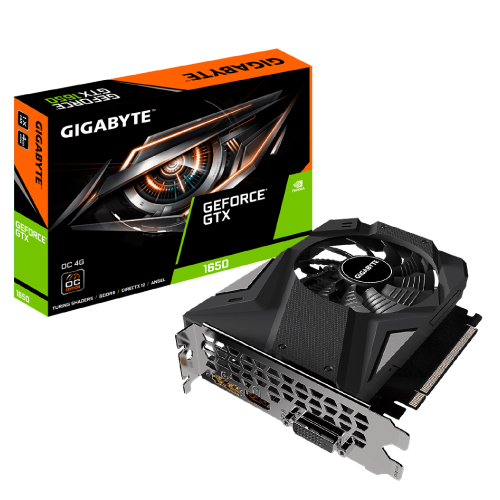

GeForce® GTX 1650 D6 OC 4G (rev. 1.0) rev. 3.0 rev. 2.0
Features
Powered by GeForce® GTX 1650
NVIDIA Turing™ architecture and GeForce Experience™
Integrated with 4GB GDDR6 128bit memory interface
80mm unique blade fan
170 mm compact card size
Core Clock
1635 MHz (Reference Card: 1590 MHz)
GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE Custom-designed cooling system features a 80mm unique blade fan, delivering an effective heat dissipation capacity for higher performance at lower temperatures.
COMPACT SIZE FOR EASY INSTALLATION
With less than 170mm in length, the graphics card can be easily installed in any small chassis.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
|
Graphics Processing
|
GeForce® GTX 1650
|
|
| Core Clock |
1635 MHz (Reference Card: 1590 MHz)
CUDA® Cores
|
|
CUDA® Cores
|
896
|
|
Memory Clock
|
12000 MHz
|
|
| Memory Size |
4 GB
|
|
Memory Type
|
GDDR6
|
|
| Memory Bus |
128 bit
|
|
| Memory Bandwidth (GB/sec) |
192 GB/s
|
|
Card Bus
|
PCI-E 3.0 x 16
|
|
| Digital max resolution |
7680x4320
|
|
| Multi-view |
3
|
|
| Card size |
L=153 W=116 H=36 mm
|
|
| PCB Form |
ATX
|
|
| DirectX |
12
|
|
| OpenGL |
4.6
|
|
| Recommended PSU |
300W
|
|
| Output |
DisplayPort 1.4 *1
HDMI 2.0b *1
DVI-D *1
|
|
| SLI Support |
No
|
