Fractal Micro ATX Mini Tower No/PS

Item #
CS21F
Brand
Fractal Design
Model
FD-CA-CORE-1100-BL

Color
Black
Warranty
2 Year
Condition
Retail Box
If out of stock
While Supplies Last
Add On Products
Product Description

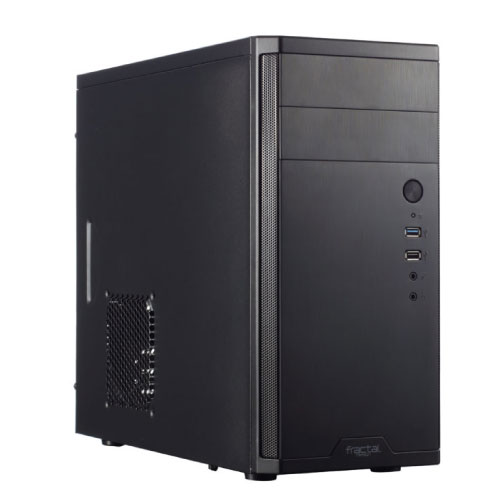

Fractal Micro ATX Mini Tower No/PS

This case is optimized for airflow with a straight cooling path, a pre-installed 120 mm fan and dust filters in the front panel. The innovative vertical hard drive bracket can fit either two 3.5" drives, three 2.5" drives, or one drive of each size. Both 3.5" drive slots come with silicone vibration dampening grommets.
An extremely compact micro ATX case, designed for exceptional airflow and cooling

Brushed aluminum-look front panel with a sleek, three-dimensional textured finish and a fully painted interior, with Fractal Design signature white details

One Fractal Design 120 mm fan included

Easy access I/O on front panel with audio, USB 3.0 and USB 2.0 ports

Front panel dust filters and closed top and bottom panels help maintain a dust free interior

The innovative vertical HDD bracket can hold two 3.5" drives or three 2.5" drives (or one drive of each size) with vibration-dampened mounting for both 3.5" drive slots

Specifications
Drive bay capacity
2x 3.5" HDD or 3x 2.5" HDD/SSD or 1x 2.5" HDD/SSD or 1x 3.5" HDD

ODD slots
2x 5.25"

Expansion slots
4

Front ports
1x USB 3.0, 1x USB 2.0, Audio in/out, Power button with LED (white), HDD activity LED (white)

Total fan mounts
3

Front fan
1x 120 mm (1x Fractal Design Silent Series 120 mm fan included)

Rear fan
1x 92 mm

Side fan
1x 120 mm

Dust filters
Front fans

Compatibility
Power supply type
ATX

Motherboard compatibility
Mini ITX, Micro ATX

PSU max length
185 mm (with typical-length optical drive)

GPU max length
350 mm in length; One or more 3.5" hard drives may interfere with side-mounted power connectors on graphics cards longer than 170 mm

CPU cooler max height
148 mm

Dimensions
Case dimensions (WxHxD)
175 x 358 x 410 mm

Net weight
3.8 kg

Package dimensions (WxHxD)
235 x 485 x 420 mm

Package weight
4.6 kg

Volume
26.3 litres

Other
Package contents
Core 1100 computer case, Accessory box, User manual

EAN
7350041081913

UPC
817301011914

Product code
FD-CA-CORE-1100-BL
