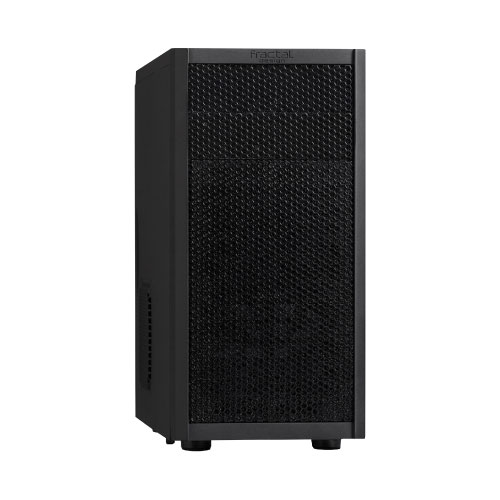

Fractal Micro ATX Mini Tower No/PS usb 3

Product Description

Sporting many features usually only seen in more expensive and larger cases

Simple yet elegant mesh front panel allowing increased airflow through the case
Optimized for performance in a compact, micro-ATX form factor with multiple cooling options
1x USB 3.0 with internal connector, 1x USB 2.0

• Simple yet elegant mesh front panel allowing for increased airflow through the case
•

• Optimized for performance in a compact, micro-ATX form factor with multiple cooling options
•

• 1x USB 3.0 with internal connector, 1x USB 2.0
•

• One Silent Series R2 fan included: 1x 120 mm in front
•

• A total of three fan slots (1x 120 mm in front, 1x 92 mm in rear, 1x 120 mm in side panel)
•

• Innovative HDD positioning which mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets
•

• Supports long graphics cards up to 350 mm in length
•

• Supports various combinations of drive sets ups: 3x 2.5" SSD, 2x 3.5" HDD or 1x 2.5" SSD + 1x 3.5" HDD
•

• Dust filter for front fan position

Specifications
Drive bay capacity	2x 3.5" HDD or 3x 2.5" SSD or 1x 3.5" HDD + 1x 2.5" SSD
ODD slots	2
FDD slot	1, using convertor in ODD slot (convertor included)
Expansion slots	4
Front ports	1x USB 3.0 with internal connector, 1x USB 2.0, 1x 3.5 mm audio in (mic), 1x 3.5 mm audio out (headphone), Power button with LED, HDD LED, Reset button
Total fan mounts	3
Front fan	1x 120 mm (1x 120 mm Silent Series R2 included)
Top fan	1x 92 mm
Side fan	1x 120 mm
Dust filters	Front fans
Compatibility
Power supply type	ATX
Motherboard compatibility	mATX, Mini ITX, DTX
PSU max length	185 mm (with optical drive)
GPU max length	350 mm in length with one HDD mounted, 210 mm in length with two/three HDD mounted
CPU cooler max height	148 mm
Dimensions
Case dimensions (WxHxD)	175 x 355 x 420 mm
Net weight	4.1 kg
Package dimensions (WxHxD)	225 x 415 x 475 mm
Package weight	5 kg
Volume	26.1 litres
Other
Package contents	Core 1000 USB 3.0 computer case, Accessory box, User manual
Product code	FD-CA-CORE-1000-USB3-BL
