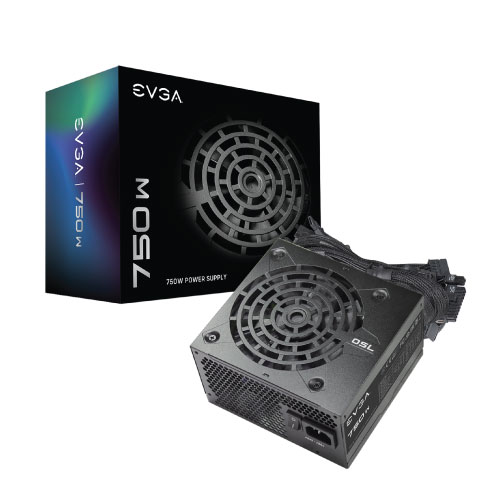

EVGA 750WT Single Fan Power Supply

Item #
PS750E
Brand
EVGA
Model
100-N1-0750-L1

Color
Black
Warranty
2 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description
EVGA 750 N1, 750W, 2 Year Warranty,
Power Supply 100-N1-0750-L1

When building on a budget, the EVGA 750W power supply is a great choice at a low cost. Supporting 59A on a single +12V rail provides more options without having to reduce your component requirements. The EVGA 750W offers the connections and protections needed for basic system builds. With a standard 2 year warranty and ultra quiet fan design the EVGA 750W power supply will be a great asset for your next build on a budget.


CABLE LENGTH
ATX Cable

EPS Cable

PCIe Cable

SATA Cable

Four-Pin Peripheral Cable

AC Power

Floppy Adapter
1x 550mm

1x 600mm

1x 550mm, 670mm

3x 450mm, 570mm, 690mm

1x 450mm, 570mm, 690mm  (Floppy)

1x 1200mm (m)

1x 120mm

CONNECTOR QUANTITY
24 Pin ATX

EPS (CPU)

PCIe

SATA

Four-Pin Peripheral

Floppy
1x

1x 8pin (4+4)

2x 8pin (6+2)

9x

3x

1x

POWER SPECS
AC Input

Rail


Max Output


Total
110 - 240 VAC, 8-4A, 50 - 60 Hz

+3.3V +5V   +12V +5Vsb -12V

24A    20A     59A       3A       0.3A
                            59A
120W            708W       15W   3.6W

750W @ +25C

ADDITIONAL DETAILS
Japanese Capacitors

ECO Mode

MTBF

Net Weight

Size

Approvals


Fan Size / Bearing

Operating Temperature
No

No

100,000 Hours

4 lbs

86mm (H) x 150mm (W) x 140mm (L)

TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement

120mm Sleeve Bearing

0° to 25° C
