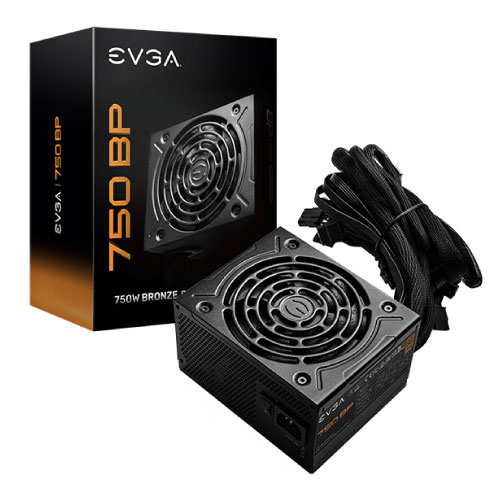

EVGA 750WT 80+ Bronze Power

Item #
PS750EVBQ1
Brand
EVGA
Model
100-BP-0750-K1

Color
Black
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
While Supplies Last
Product Description
80 PLUS Bronze certified, with 85% efficiency or higher under typical loads

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

Active Power Factor Correction

DC-DC Converter improves 3.3V/5V stability

EVGA Global 3 Year Limited Warranty and unparalleled EVGA Customer Support


CABLE LENGTH
ATX Cable

EPS Cable

PCIe Cable

SATA Cable

Four-Pin Peripheral Cable

AC Power

Modular Cable Type
1x 550mm

1x 600mm

2x 550mm, 670mm

3x 450mm, 570mm, 690mm

1x 450mm, 570mm, 690mm + 810mm (Floppy)

1x 1200mm (m)

 No

CONNECTOR QUANTITY
24 Pin ATX

EPS (CPU)

PCIe

SATA

Four-Pin Peripheral

Floppy
1x 24pin (20+4)

1x 8pin (4+4)

4x 8pin (6+2)

9x

3x

1x

INPUT
Input Voltage

AC Input

Input Frequency Range

Efficiency
100-240V~

10-5A

60/50Hz

85% Typical

OUTPUT
Rail


Max output



Total
+3.3V    +5V    +12V    -12V    +5Vsb


20A    20A    32.5A    0.3A    3A
120W    750W    3.6W    15W


750W

ADDITIONAL DETAILS
Japanese Capacitors

ECO Mode

MTBF

Net Weight

Size

Approvals


Fan Size / Bearing


No

No

100,000 Hours

6 lbs

86mm (H) x 150mm (W) x 120mm (L)

TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement

115mm Hydraulic Bearing
