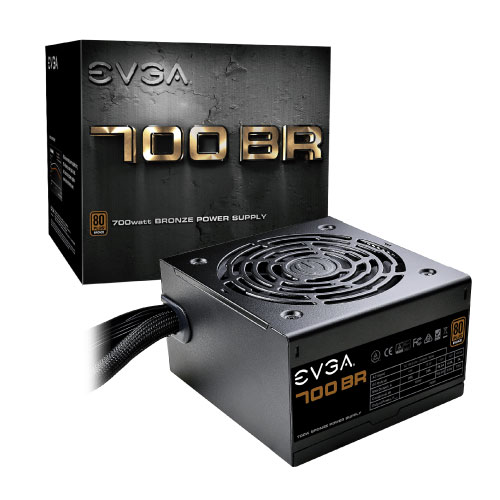

EVGA 700WT 80+ Bronze Power Supply

Product Description

EVGA 700 BR, 80+ BRONZE 700W, 3 Year Warranty, Power Supply 100-BR-0700-K1

Introducing the EVGA BR Series of power supplies. Building upon our already great line of Bronze rated power supplies, we sought to make the improvements our customers asked for. Our BR Series are 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads. Features a non-modular design with all black full sleeved cables for that high end aesthetic, 120mm sleeve bearing quiet fan, increased 3.3V/5V voltage stability, all backed by EVGA's World Leading Warranty and Support for 3 Years.

80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
Single 12V. Rail
Active Power Factor Correction
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
3 Year Warranty
DC-DC Converter improves 3.3V/5V stability

CABLE LENGTH
ATX Cable EPS Cable PCIe Cable SATA Cable Four-Pin Peripheral Cable Floppy Adapter AC Power Modular Cable Type	1x 550mm 1x 600mm 2x 550mm, 670mm 3x 450mm, 570mm, 690mm  1x 450mm, 570mm, 690mm + 810mm (Floppy) 1x  1x 1200mm (m) No
CONNECTOR QUANTITY
24 Pin ATX EPS (CPU) PCIe SATA Four-Pin Peripheral Floppy	1x 2x 8pin(4+4)  4x 8pin (6+2) 9x 3x 1x
POWER SPECS
AC Input  Rail  Max Output Total	100 - 240 VAC, 10/5A, 50 - 60 Hz +3.3V    +5V    +12V    +5Vsb    -12V 24A      20A         58.3    3A    0.3A 700W @ +30C
ADDITIONAL DETAILS
Operating Temperature Japanese Capacitors ECO Mode MTBF Net Weight Size  Approvals Compliance with ErP Fan Size / Bearing	0° to 30° C     No    No 100,000 Hours 4 lbs 85mm (H) x 150mm (W) x 140mm (L)  TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Lot 6 2013 Requirement 120mm Long Sleeve Bearing
Product Warranty	This product comes with a 3 year warranty. Registration is recommended.
