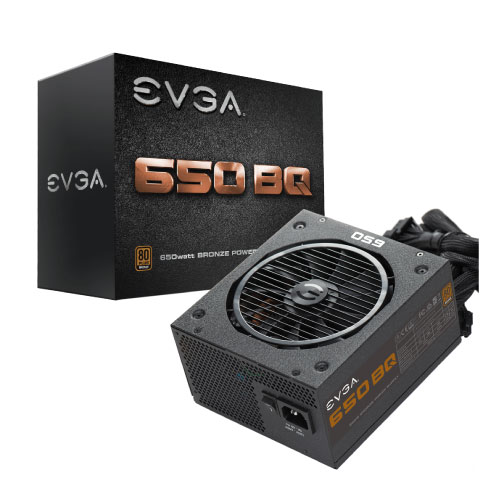

EVGA 650WT 80+ Bronze Semi Modular Power

Item #
PS650EVBQ
Brand
EVGA
Model
110-BQ-0650-V1

Color
Black
Warranty
5 Year /2 Year OTC /3 Year MFG
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description
EVGA 650 BQ, 80+ BRONZE 650W, Semi Modular, 5 Year Warranty, Includes FREE Power On Self Tester, Power Supply 110-BQ-0650-V1

Introducing the next generation in value; the EVGA BQ Series. These power supplies take some of the best features from EVGA's award winning power supply lineup, like a 140mm fan with near silent operation and modular cables to make one of the best values today in high performance power supplies.

CABLE LENGTH
ATX Cable

EPS Cable

PCIe Cable

SATA Cable

Four-Pin Peripheral Cable

Floppy Adapter

AC Power

Modular Cable Type
1x 550mm

1x 600mm

2x 550mm, 700mm

1x 500mm, 650mm, 800mm, 950mm, 1x 500mm, 650mm, 800mm

1x 550mm, 700mm, 850mm + 1000mm (Floppy)

1x

1x 1800mm

Semi

CONNECTOR QUANTITY
24 Pin ATX

EPS (CPU)

PCIe

SATA

Four-Pin Peripheral

Floppy

1x

1x 8pin(4+4)

2x 8pin (6+2), 6pin

7x

3x

1x


POWER SPECS
AC Input

Rail


Max Output



Total


       100-240  VAC, 10A, 60/50 Hz

     +5V      +3.3V      +12V        +5Vsb        -12V

     20A        24A         54A          3A             0.3A

                  130W      648W       15W          3.6W

                                      650W



ADDITIONAL DETAILS

Operating Temperature

Japanese Capacitors

ECO Mode

MTBF

Net Weight

Size

Approvals


Fan Size / Bearing

0° to 40° C

Main PCB

No

100,000 Hours

5 lbs

85mm (H) x 150mm (W) x 165mm (L)

TUV, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement

140mm Teflon Nano-Steel Bearing


Product Warranty
This product comes with a 5 year limited warranty with registration.
EVGA offers several warranty solutions for our customers to choose from. Please refer to the suffix of the part number and our Warranty Terms for details.
