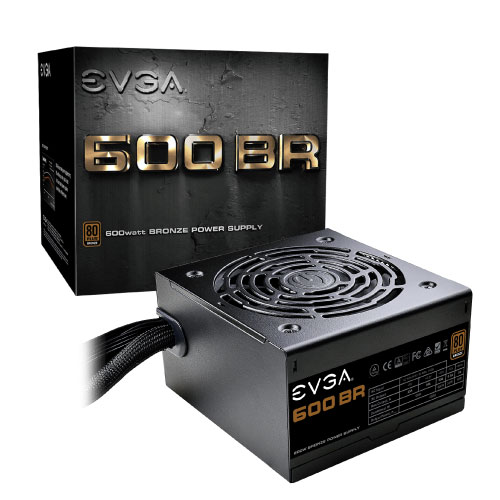

EVGA 600WT 80+ Bronze Power Supply

Item #
PS599EV2
Brand
EVGA
Model
100-BR-0600-K1

Color
Black
Warranty
3 Year /1 Year OTC /2 Year MFG
Add On Products
Product Description
Introducing the EVGA BR Series of power supplies. Building upon our already great line of Bronze rated power supplies, we sought to make the improvements our customers asked for. Our BR Series are 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads. Features a non-modular design with all black full sleeved cables for that high end aesthetic, 120mm sleeve bearing quiet fan, increased 3.3V/5V voltage stability, all backed by EVGA's World Leading Warranty and Support for 3 Years.



CABLE LENGTH
ATX Cable

EPS Cable

PCIe Cable

SATA Cable

Four-Pin Peripheral Cable

AC Power

Modular Cable Type
1x 550mm

1x 600mm

1x 550mm, 670mm

2x 450mm, 570mm, 690mm

1x 450mm, 570mm, 690mm + 810mm (Floppy)

1x 1200mm (m)

 No

CONNECTOR QUANTITY
24 Pin ATX

EPS (CPU)

PCIe

SATA

Four-Pin Peripheral

Floppy
1x

1x 8pin (4+4)

2x 8pin (6+2)

6x

3x

1x

INPUT
Input Voltage

AC Input

Input Frequency Range

Efficiency
100-240V~

10-5A

60/50Hz

85% Typical

OUTPUT
Rail


Max output



Total
+3.3V    +5V    +12V    -12V    +5Vsb


20A    20A    50A    0.3A    3A
130W    600W    3.6W    15W


 600W@30+C

ADDITIONAL DETAILS
Japanese Capacitors

ECO Mode

MTBF

Net Weight

Size

Approvals


Fan Size / Bearing


No

No

100,000 Hours

4 lbs

86mm (H) x 150mm (W) x 140mm (L)

TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement

120mm Sleeve Bearing
