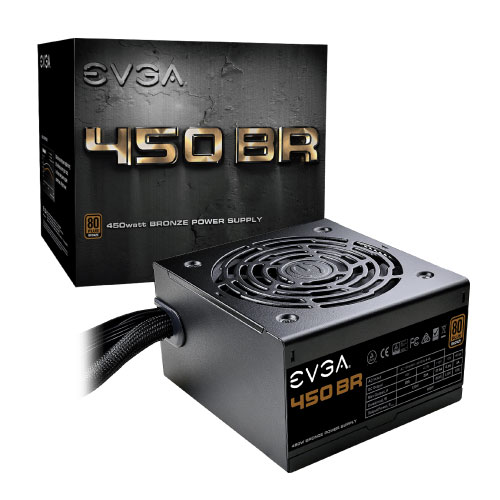

EVGA 450WT 80+BR Power Supply

Item #
PS4500EV2
Brand
EVGA
Model
100-BR-0450-K1

Color
Black
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
While Supplies Last
Add On Products
Product Description
EVGA 450 BR, 80+ BRONZE 450W, 3 Year Warranty, Power Supply 100-BR-0450-K1
P/N: 100-BR-0450-K1


Introducing the EVGA BR Series of power supplies. Building upon our already great line of Bronze rated power supplies, we sought to make the improvements our customers asked for. Our BR Series are 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads. Features a non-modular design with all black full sleeved cables for that high end aesthetic, 120mm sleeve bearing quiet fan, increased 3.3V/5V voltage stability, all backed by EVGA's World Leading Warranty and Support for 3 Years.
80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
Single 12V. Rail
Active Power Factor Correction
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
3 Year Warranty
DC-DC Converter improves 3.3V/5V stability
Quiet and Intelligent Auto Fan for near-silent operation

CABLE LENGTH
ATX Cable

EPS Cable

PCIe Cable

SATA Cable

Four-Pin Peripheral Cable

AC Power

Modular Cable Type
1x 550mm

1x 600mm

1x 550mm, 670mm

2x 450mm, 570mm, 690mm

1x 450mm, 570mm, 690mm + 810mm (Floppy)

1x 1200mm (m)

 No

CONNECTOR QUANTITY
24 Pin ATX

EPS (CPU)

PCIe

SATA

Four-Pin Peripheral

Floppy
1x

1x 8pin (4+4)

2x 8pin (6+2)

6x

3x

1x

POWER SPECS
AC Input

Rail


Max Output


Total
100 -   240 VAC,  8/4A, 50 - 60 Hz

+3.3V             +5V              +12V           +5Vsb            -12V

20A                 20A              37.5A             3A                 0.3A
                                             450W
120W                                  450W            15W              3.6W

                                     450W @ +30C

ADDITIONAL DETAILS
Japanese Capacitors

ECO Mode

MTBF

Net Weight

Size

Approvals


Fan Size / Bearing


No

No

100,000 Hours

4 lbs

86mm (H) x 150mm (W) x 140mm (L)

TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement

120mm Sleeve Bearing
