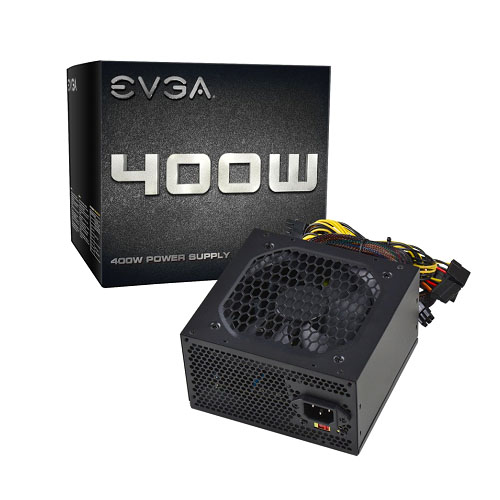

EVGA 400WT Single Fan Efficiency 75%

EVGA 400WT Single Fan Efficiency 75%

Item #
2 Year
Retail Box
If out of stock
While Supplies Last
Add On Products
Product Description
When building on a budget, the EVGA 400W power supply is a great choice at a low cost. Supporting 30A on a single +12V rail provides more options without having to reduce your component requirements. The EVGA 400W offers the connections and protections needed for basic system builds. With a standard 2 year warranty and ultra quiet fan design the EVGA 400W power supply will be a great asset for your next build on a budget.
Product Type: Power Supply

Technical Information
Specification Compliance: ATX12V/EPS12V
Efficiency: 75%
Number of Fans: 1
Protection Type: Short Circuit
Protection Type: Over Power
Protection Type: Under Voltage
Modular: No

MTBF: 100000 Hour

Power Description
Number of +12V Rails: 1
Input Voltage Type: AC
Input Voltage: 120 V AC
Input Voltage: 220 V AC
Input Voltage Range: 100 V AC to 240 V AC
Output Voltage: 12 V DC @ 30 A
Output Voltage: 3.3 V DC @ 18 A
Output Voltage: 5 V DC @ 17 A
Output Voltage: -12 V DC @ 300 mA
Output Voltage: 5 V DC @ 2 A
Input Current: 10 A @ 230V
Input Current: 5 A @ 120V
Output Power: 400 W

Receptacles: 1 x 24-pin ATX Motherboard
Receptacles: 1 x 4-pin SP4 Floppy Drive
Receptacles: 1 x 6-pin PCI-E
Receptacles: 3 x 4-pin LP4 Peripheral Device
Receptacles: 1 x 4+4pin ATX12V Motherboard
Receptacles: 1 x 6+2pin PCI-E
Receptacles: 4 x Serial ATA

Physical Characteristics
Color: Black
Form Factor: Internal
Height: 3.3"
Width: 5.9"
Length: 5.5"
Weight (Approximate): 2 lb

Certifications & Standards: •cUL

Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Certification: TÜV
Environmental Certification: WEEE

Limited Warranty: 2 Year
