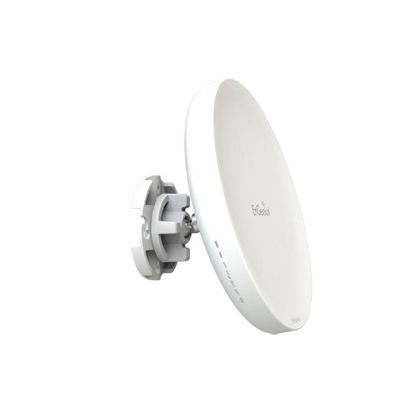

Long-Range Wireless 11ac Outdoor AP/Bridge
11ac high-speed wireless to 867 Mbps performance, optimal bandwidth at extended distances
Technical Specifications
Standard IEEE 802.11a/n/ac
Internal Antennas (1) 19 dBi 5 GHz High-Gain Directional
Physical Interface (1) 10/100/1000 Mbps
Port Supports 802.3at/af Proprietary 48V~ 54V PoE
Input (1) 10/100/1000 Mbps
Port Supports 802.3af/PSE Output
LED Indicators
1 x Power
1 x LAN 1
1 x LAN 2
1 x WLAN
Reset Button
Power Power Source (PoE Adapter): 802.3at/~54V Proprietary Compliant Source Active Ethernet (Power-over-Ethernet, PoE)
Power Consumption 23.4W Wireless & Radio
Specifications Operating Frequency 5 GHz Operation Modes Access Point Client Bridge WDS modes Transmit Power Up to 26 dBm Up to 400 mW Max Power is limited by regulatory power Radio I 11a/n/ac: 5.180-5.825 GHz Radio Chains/Spatial Streams 2x2:2 MIMO Supported Data Rates (Mbps) 5 GHz: Max 867 Mbps 802.11a: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) 802.11ac: 6.5 to 867 (MCS0 to MCS9) Supported Radio Technologies 802.11a/n/ac: Orthological Frequency-Division Multiplexing (OFDM) Channelization 802.11ac with 20/40/80 MHz Channel Width 802.11n with 20/40 MHz Channel Width 802.11a with 20 MHz Channel Width Supported Modulation 802.11a/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, OFDM & 256-QAM 5 GHz (Port 1) Average Antenna Gain: 19 dBi Polarization: Linear Azimuth Beam Width: 30° Elevation Beam-Width: 18° VSWR: 1:2.0 5 GHz (Port 2) Average Antenna Gain: 19 dBi Polarization: Linear Azimuth Beam Width: 18° Elevation Beam-Width: 30° VSWR: 1:2.0 Management Auto Channel Selection Multiple SSIDs: 8 SSIDS BSSID Support VLAN Tagging
Independent VLAN settings cab be enabled/disabled VLAN Pass-through Over WDS Bridge Mode VLAN Per SSID
Isolate each SSID with Individual VLAN Wireless STA (Client) Connection List Email Alert Client Traffic Status Configuration Web Interface (HTTPS) SSH SNMP V1/v2c/v3 Support MIB I/II, Private MIB CLI Support Save Configurations as Default Control Features RADIUS Accounting - Helps operators to offload 3G to Wi-Fi seamlessly CLI Comments Support Distance Control (Ack Timeout) Multicast Supported RSSI Threshold Wi-Fi Scheduler Security WEP Encryption: 64/128/152 bit WPA/WPA2 Personal (WPA-EAP using TKIP AES) WPA/WPA2 Enterprise (WPA-EAP using TKIP AES) Hide SSID in Beacons MAC Address Filtering (Up to 32 MAC addresses per SSID) 802.1x Authenticator QoS Compliant with IEEE 802.11e Standard Environmental & Physical Temperature Range Operating: -4 °F to 140 °F (-20 °C to 60 °C) Storage: -22 °F to 176 °F (-30 °C to 80 °C) Humidity (non-condensing) Operating: 90% or less Storage: 90% or less Waterproof IP55-Rated Enclosure
Dimensions & Weights EnStationAC Device (Without Mounting Kit) Weight: 1.01 lbs. (460 g) Depth: 7.48” (190 mm) Height: 1.50” (38 mm) Packaging Weight: 2.29lb (1.04 kg) Width: 9.72” (247 mm) Length: 12.63” (321 mm) Height: 3.46” (88 mm) Master Carton Weight: 25.66 lbs. (11.674 kg) Width: 18.22” (463 mm) Length: 20.19” (513 mm) Height: 14.21” (361 mm)
- No. of boxes per Master carton: 10 Units Package Contents
- EnStationAC Outdoor CPE
- PoE Adapter (EPA5006GP)
- Pole/Wall Mounting Kit
- Mounting Screw Set
- Quick Installation Guide Certifications FCC, CE, RCM Warranty 1 Year
