REDEFINING THE MEANS OF MODERNITY
Edgy asymmetrical design with full mesh on the front panel
Mini tower with great expandability that supports up to three 3.5" HDD and four 2.5" SSD
Supports a 240mm liquid cooling radiator in the front
Supports high-end graphics cards with a length of up to 355mm/14inch
Supports air CPU cooler heights up to 160mm/6.3inch
Supports SuperSpeed USB 3.0
Removable dust filter under the PSU for easy maintenance
SIMPLISTIC & INDUSTRIAL

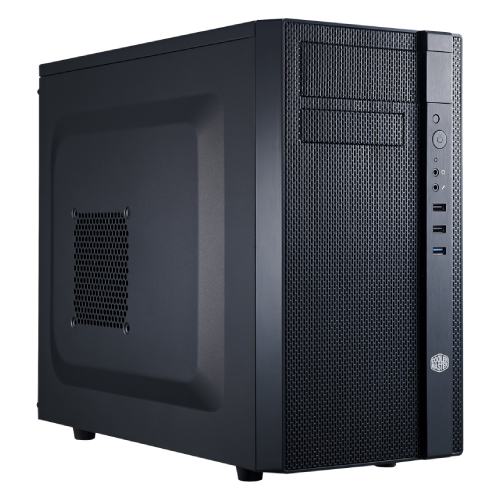

The Cooler Master N200 redefines the meaning of modernity by its edgy asymmetrical front panel and rectangle mesh design, which totally breaks the stereotype of cases. The ports are arranged vertically on the brushed I/O bar, giving it a fresh and modern look.
COMPACT YET EXPANDABLE
Supports a 240mm liquid cooling radiator in the front
Supports high-end graphics cards with a length of up to 355mm/14inch
Supports air CPU cooler heights up to 160mm/6.3inch
|
Model Number
|
NSE-200-KKN1 (Black), NSE-200-KWN1 (Brown)
|
|
Materials
|
Plastic bezel with metal mesh, Steel body
|
|
Dimensions (L x W x H)
|
202 x 378 x 445 mm / 7.9 x 14.9 x 17.5 inch
|
|
Net Weight
|
4.3 kg / 9.5 lbs
|
|
| Motherboard Support |
Micro ATX, Mini ITX
|
|
5.25" Drive Bays
|
1 (Max. length of 5.25" device: 170mm / 6.7")
|
|
| 3.5" Drive Bays |
3
|
|
| 2.5" Drive Bays |
4
|
|
I/O Panel
|
N200: 1x USB 3.0, 2x USB 2.0, Audio In & Out, N200 Advanced / N200; Chocolate: 2x USB 3.0, 1x USB 2.0, Audio In & Out
|
|
| Expansion Slots |
4
|
|
| Cooling System - Top |
120x15mm fan x 1 (optional)
|
|
| Cooling System - Front |
120mm black fan x 2
|
|
| Cooling System - Rear |
120mm black fan x 1
|
|
| Cooling System - Side |
120mm fan x 1 (optional)
|
|
| Power Supply Support |
Standard ATX PS2 (The max. length of PSU: 180mm / 7.1 inch)
|
|
Maximum Compatibility - CPU Cooler Height
|
160mm / 6.3 inch (w/o 120x25mm side fan), 140mm / 5.5 inch (w/ 120x25mm side fan)
|
|
| Maximum Compatibility - VGA Card Length |
355mm / 14.0 inch
|
|
| Series |
N Series
|
|
| Size |
Mini Tower
|
