BioStation 2 Cntr & RFID Card Reader E

Product Description

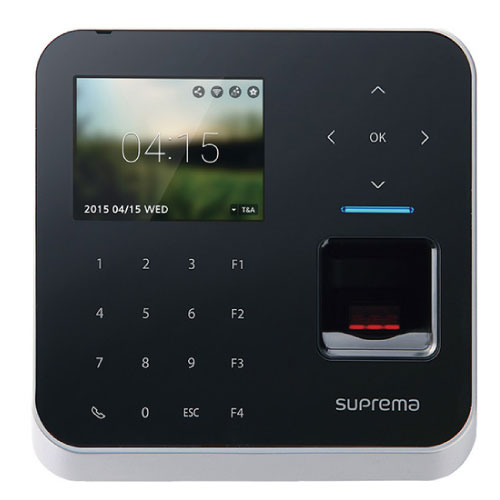

BS2-OEPW BioStation 2 EM Card & Fingerprint Reader from Suprema combines EM card and fingerprint reading to provide dual-layer security, authentication, and access control. This reader is capable of instantly matching and authenticating up to 20,000 fingerprints per second. The optical sensor can recognize fingerprints from up to 500,000 users. The built-in 2.8" LCD screen displays information and settings entered from the numeric keypad and assorted buttons.

This device is equipped with a built-in speaker and microphone. It features RS-485 and RS-232 communication protocols, one relay, a Wiegand input & output, two TTL inputs, and two TTL outputs. The reader's tamper-resistant housing is IP65 rated for outdoor use.

• 1 GHz CPU
• Optical sensor captures and recognizes fingerprints from fingers in non-ideal conditions, such as wet and dry fingers
• Instantly matches and authenticates up to 20,000 fingerprints per second
• Rapid data transfer sends user and log data at a rate of 5000 users per minute
• Holds up to 3,000,000 logs for backup in the event of a connection loss to the server
• Up to 1,000,000 templates
• Built-in 802.11b/g Wi-Fi
• 802.3af PoE
• 100M Ethernet
• TCP/IP interface
• USB 2.0 interface
• USB port to connect to a memory stick
• Wiegand input and output
• Two TTL inputs and two TTL outputs
• Numeric keypad, intercom, escape button, function buttons, arrow keys, and OK button
• Multicolor LED lamp
• CE, FCC, KC, RoHS, REACH, and WEEE certified

Biometric	Fingerprint MINEX Certified and Compliant
RF Options	125 kHz EM
Template	SUPREMA, ISO 19794-2, ANSI 378
Capacity	Maximum Users (One Finger Enrollment per User): 500,000 (1:1), 20,000 (1:N) Maximum Fingers per User: 10 Maximum Templates (Two Templates per Finger): 1,000,000 (1:1), 40,000 (1:N)
Maximum Text Logs:	3,000,000
CPU	1.0 GHz Single-Core
Memory    Flash:	8 GB
RAM:	256 MB
LCD Screen	2.8" / 7.1 cm TFT LCD
LED	Multicolor LED Lamp
Sound	16-Bit
Built-In Microphone	Yes
Built-In Speaker	Yes
Wi-Fi	IEEE 802.11b/g
TCP/IP	Yes
Intercom	Supported
PoE	802.3af
Ethernet	1 x 100M, Auto MDI-X
RS-485	1-Channel Host or Slave (Selectable)
RS-232	Supported
DIP Switch	Yes
Wiegand	1 x Input 1 x Output
TTL	2 x Inputs 2 x Outputs
Relay	1 x Relay
USB Ports	1 x USB 1 x Mini-USB
USB 2.0	Yes
Power	12 VDC
Operating Temperature	-4 to 122°F / -20 to 50°C
Operating Humidity	0 to 80%, Non-Condensing
Storage Temperature	-40 to 158°F / -40 to 70°C
Storage Humidity	0 to 90%, Non-Condensing
IP Rating	IP65
Tamper Resistance	Yes
Certificates	CE, FCC, KC, RoHS, REACH, WEEE
Dimensions (W x H x D)	5.6 x 5.7 x 1.8" / 142 x 144 x 45 mm
Weight	Device: 14.1 oz / 400 g
