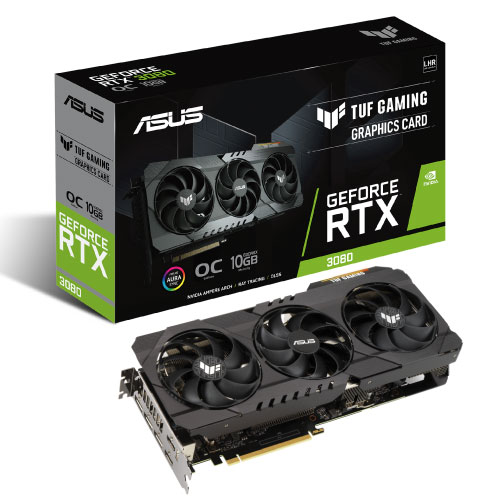

TUF Gaming GeForce RTX™ 3080 V2 OC Edition 10GB GDDR6X with LHR offers a buffed-up design that delivers chart-topping thermal performance.
NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
This GeForce RTX 3080 graphics card with LHR (lite hash rate) delivers 43 MH/s ETH hash rate (est.).
OC edition: Boost clock 1815 MHz (OC mode)/1785 MHz (Gaming mode).
Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.
Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
Military-grade Capacitors and other TUF components enhance durability and performance.
GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
|
Graphic Engine
|
NVIDIA® GeForce RTX™ 3080
|
|
| Bus Standard |
PCI Express 4.0
|
|
OpenGL
|
OpenGL®4.6
|
|
Video Memory
|
10GB GDDR6X
|
|
| Engine Clock |
OC Mode - 1815 MHz (Boost Clock)
Gaming Mode (Default) - GPU Boost Clock : 1785 MHz , GPU Base Clock : 1440 MHz
|
|
CUDA Core
|
8704
|
|
| Memory Speed |
19 Gbps
|
|
| Memory Interface |
320-bit
|
|
Resolution
|
Digital Max Resolution 7680 x 4320
|
|
| Interface |
Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
|
|
| Maximum Display Support |
4
|
|
| NVlink/ Crossfire Support |
No
|
|
| Accessories |
1 x Collection card
1 x Speedsetup manual
1 x TUF certificate of Reliability
|
|
| Software |
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
|
|
| Dimensions |
11.8 " x 4.99 " x 2.03 " Inch
29.99 x 12.69 x 5.16 Centimeter
|
|
| Recommended PSU |
850W
|
|
| Power Connectors |
2 x 8-pin
|
|
| Slot |
2.7 Slot
|
|
| Note |
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
|
