Micro-ATX B660 business motherboard with enhanced security, reliability, manageability and efficiency
Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: A self-recovering BIOS and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED diagnostic display and COM debug header and to facilitate building and support processes
|
Model
|
Brand ASUS

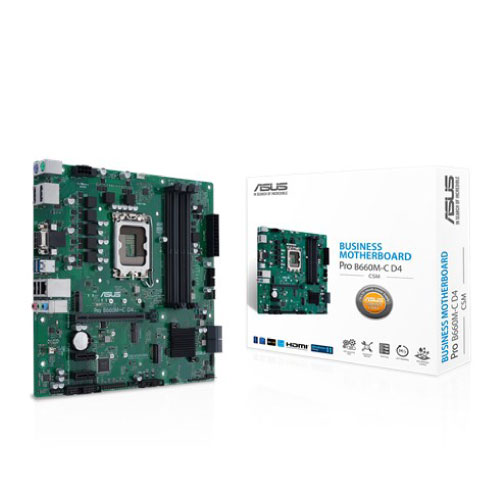

Model PRO B660M-C D4-CSM
|
|
| Supported CPU |
CPU Socket Type LGA 1700
* Dedicated LGA1700 mounting bracket is required.
CPU Type Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/
* Refer to www.asus.com for CPU support list.
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
|
Chipsets
|
Chipset Intel B660
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
|
|
Memory
|
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 *
* Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported 128GB
Channel Supported Dual Channel
|
|
| Expansion Slots |
PCI Express 4.0 x16 1 x PCI Express 4.0 x16
* Actual support may vary by CPU.
PCI Express x1 2 x PCI Express 3.0 x1
|
|
Storage Devices
|
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 Intel 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode
Intel B660 Chipset*:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
* Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready Yes
SATA RAID 0/1/5/10
|
|
| Onboard Audio |
Audio Channels 7.1 Channels
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
|
|
| Onboard LAN |
Max LAN Speed 10/100/1000Mbps
|
|
Rear Panel Ports
|
Back I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
2 x DisplayPort
1 x HDMI port
1 x D-Sub port
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
|
|
| Internal I/O Connectors |
Onboard USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
|
|
| Miscellaneous |
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x 10-1 pin System Panel header
|
|
| Physical Spec |
Form Factor Micro ATX
LED Lighting None RGB
Dimensions (W x L) 9.6" x 9.6"
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|
|
| Windows Compatibility |
Windows 11 Supported
|
|
| Features |
Features Special Features:
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- Q-LED Core
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection
TPM 2.0 IC onboard
|
|
| Software Features: |
ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)
|
|
| BIOS: |
128Mb Flash ROM
|
|
| Manageability: |
WOL by PME, PXE
|
|
| Operating System: |
Windows 11 64-bit, Windows 10 64-bit
|
|
| Packaging |
Package Contents Accessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
|
