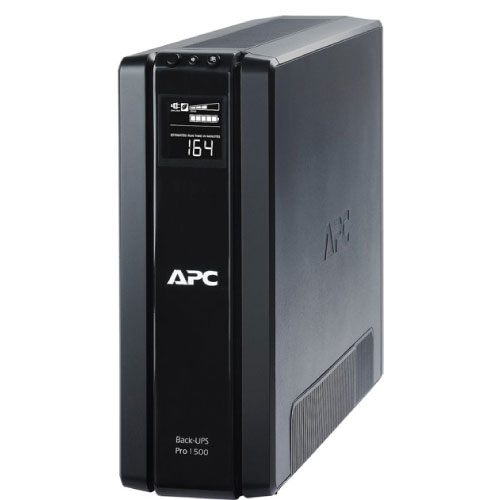

APC 1500VA 10-OUTLET USB LCD

Item #

USBX15A

Brand

APC

Model

BR1500G

Color

Black

Warranty

3 Year /1 Year OTC /2 Year MFG

Condition

Retail Box

If out of stock

Market Shortage

Product Description

Output power capacity: 865Watts / 1.5kVA
Output Connections: (5) NEMA 5-15R (Surge Protection): (5) NEMA 5-15R (Battery Backup)
Nominal Output Voltage: 120V
Nominal Input Voltage: 120V
Input Connections: NEMA 5-15P
Cord Length: 6ft (1.83meters)

Specifications

• Output
Max Configurable Power (Watts) 865Watts / 1.5kVA Output Frequency (sync to mains) :50/60Hz +/- 3 Hz Topology :Line Interactive Waveform type :Stepped approximation to a sinewave Transfer Time :8ms typical : 12ms maximum
• Input
Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Batteries & Runtime
Battery type :Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Included Battery Modules :1 Typical recharge time :8hour(s) Replacement Battery :APCRBC124 Expected Battery Life (years) :3 - 5 RBC Quantity :1 Battery Charge Power (Watts) :23Watts Battery Volt-Amp-Hour Capacity :187 Extended Run Options :APC-Power-Saving-Back-UPS-Pro-1500 Runtime :View Runtime Graph :View Runtime Chart Efficiency :View Efficiency Graph
• Communications & Management
Interface Port(s) :USB Control panel :Multi-function LCD status and control console Audible Alarm :Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Surge Protection and Filtering
Surge energy rating: 354Joules Data Line Protection: Cable modem / Video protection, Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector) Filtering: Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: instantaneous
• Physical
Maximum Height:11.85inches (301MM, 30.1CM) Maximum Width:4.41inches (112MM, 11.2CM) Maximum Depth:15.04inches (382MM, 38.2CM) Net Weight:26.62lbs. (12.1KG) Shipping weight:29.37lbs. (13.35KG) Shipping Height:15.24inches (387MM, 38.7CM) Shipping Width:9.37inches (238MM, 23.8CM) Shipping Depth:19.21inches (488MM, 48.8CM) Master Carton Units:1.0 Units per Pallet:20.0 SCC Codes:1073130426877 9
