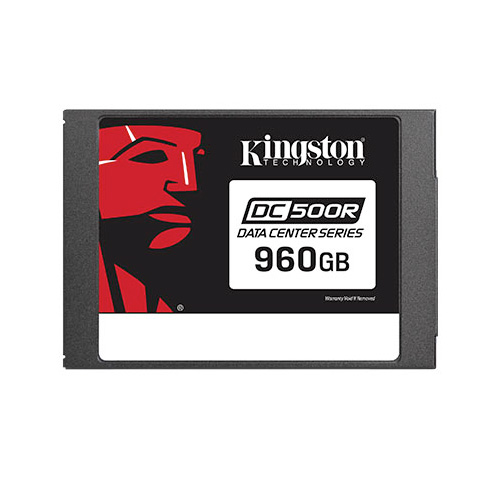

960GB Kingston Enterprise DC500R SSD 2.5

Product Description

Data Centre 500 Series
Kingston’s Data Centre 500 (DC500R / DC500M) series of solid-state drives are high-performance 6Gbps SATA SSDs that use the latest 3D TLC NAND, designed for read-centric and mixed-use server workloads. They implement Kingston’s strict QoS requirements to ensure predictable random I/O performance as well as predictable low latencies over a wide range of read and write workloads. They can increase productivity for AI, machine learning, big data analytics, cloud computing, software-defined storage, operational databases (ODB), database applications and data warehousing. Capacities from 960GB

• Optimised for read-intensive applications
• Endurance at 0.5 DWPD
• Consistent IOPS, reliable QoS and low latency
• Configurable over-provisioning
• On-board Power Loss Protection (PLP)
• Part Number: SEDC500R/960G


Form factor	2.5 inch
Interface	SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
Capacity	960GB
NAND	3D TLC
Self-Encrypting Drive (SED)	AES 256-bit Encryption
Sequential read/write:	555MBs/525MBs
Steady-state 4k read/write:	98,000/20,000 IOPS
Sequential read/write:	555MBs/520MBs
Steady-state 4k random read/write:	98,000/70,000 IOPS
Quality of service (latency)	TYP read/write: <500 µs / <2 ms
Static and dynamic wear levelling	Enterprise SMART tools    Reliability tracking, usage statistics, life remaining, wear levelling, temperature
Power loss protection	Tantalum capacitors
Endurance	876TBW6 (0.5 DWPD)
Power consumption	Idle: 1.3W Average read: 1.45W Average write: 4.5W Max read: 1.65W Max write: 7.5W
Storage temperature	-40°C ~ 85°C
Dimensions	69.9mm x 100mm x 7mm Weight    92.34g
Vibration operating	2.17G Peak (7–800Hz)
Vibration non-operating	20G Peak (10–2000Hz)
MTBF	2 million hours
Warranty/support	Limited 5-year warranty with free technical support
