System Information
|
Model

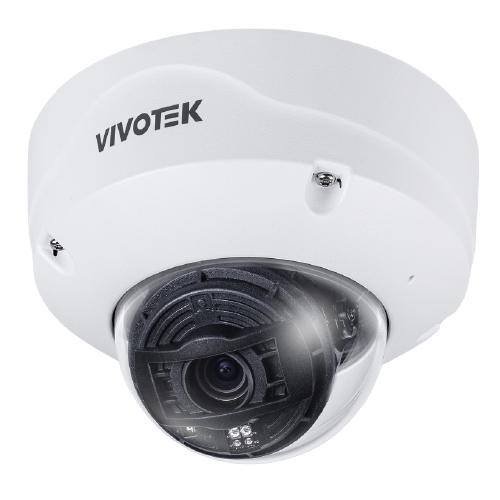

FD9391-EHTV-v2
CPU
Multimedia SoC (System-on-Chip)
Flash
8 GB
RAM
2 GB
|
|
| Camera Features |
Image Sensor
1/1.8" Progressive CMOS
Max. Resolution
3840x2160 (8MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f = 4.4 ~ 10.2 mm (f = 2.8~10.3mm, equivalent focal length @ 1/2.8")
Aperture
F1.38 ~ F2.24
Iris Type
P-iris
Field of View
110° ~ 43° (Horizontal)
57° ~ 24° (Vertical)
133° ~ 49° (Diagonal)
Shutter Time
1 sec. to 1/100,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
Minimum Illumination
0.01 lux @ F1.38 (Color)
<0.005 lux @ F1.38 (B/W)
0 lux with IR illumination on
Pan Range
±175°
Tilt Range
80°
Rotation Range
±175°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids
Remote focus, remote zoom, Micro USB*, pixel calculator
*Requires Wi-Fi dongle and Micro B converter
|
|
Video
|
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 3840x2160
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
58 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, Smart IR (target zone); Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, LDC, EIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Pixel calculator; Scheduled profile settings
|
|
Audio
|
Audio Capability
Two-way audio (Full duplex)
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
External microphone input
External line output
Effective Range
5 meters
|
|
Network
|
Users
Live viewing for up to 10 clients
Security
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account
management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
|
|
| AI Analytics |
Compute Capability
SoC with built-in hardware deep learning accelerator
Vision Object Analytics
Object Detection: People, Vehicle (4-wheeled, 2-wheeled); Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction
Application
Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
Application available with license
Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
AI-powered Image Enhancement
Smart IR III
|
|
| Solution Integration |
VADP Package : Stratocast, Trend Micro IoT Security (3-year free trial)
|
|
Alarm and Event
|
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
|
|
| General |
RJ-45 cable connector for 10/100 Mbps PoE network connection
Built-in Microphone
Audio line input
Audio line output
DC 12V power input/AC 24V power input
Digital input*2
Digital output*2
Micro USB
|
|
| LED Indicator |
System power and status indicator
|
|
| Power Input |
AC 24V/DC 12V, IEEE 802.3at PoE Class 4 (Power Redundancy)
Power Consumption
PoE: Max. 14.25/10.81 W (IR on/off)
DC 12V: Max. 14.40/10.96 W (IR on/off)
AC 24V: Max. 11.64/8.20 W (IR on/off)
|
|
| Dimensions |
ø 174 x 123 mm
Weight
1.39 kg
|
|
| Certifications |
EMC: CE (EN 55032/EN 55035 Class B, EN 50121-4), FCC (FCC Part 15 Subpart B Class B), UKCA (BS EN 55032/BS EN 55035 Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B), IC (ICES-003 Issue 7); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD, (EN 62368-1), UKCA (BS EN IEC 62368-1); Environment: IK10+ (IEC 62262), IP66/67 (IEC 60529), NEMA (NEMA 250 Type 4X), IEC 60068-2-11, IP6K9K (ISO 20653); IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
|
|
| Starting Temperature: |
-30°C ~ 60°C (-22°F ~ 140°F)
Working Temperature:
-50°C ~ 60°C (-58°F ~ 140°F) (IR off)
-50°C ~ 50°C (-58°F ~ 122°F) (IR on)
|
