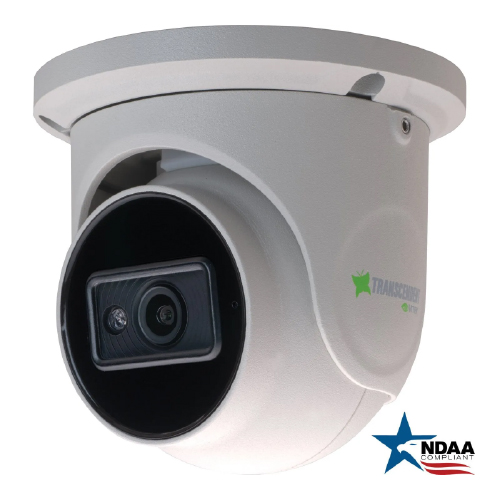

Transcendent Series 8 MP Indoor/Outdoor WDR IP Fixed Turret Camera with Matrix IRs
1/2.7” 8.0 Megapixel [4K] CMOS Image Sensor
Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ), 5MP (2592 ×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240
2.8mm Fixed Iris Lens
1 Matrix IR with up to 100’ IR Range
Digital Wide Dynamic Range (D-WDR)
True Mechanical Day/Night function by ICR
3D-DNR (Digital Noise Reduction)
Regional Intrusion Detection, Scene Change Detection, Line Crossing
H.265, H.264 Compression
MicroSD Card Slot for Local Recording (Up to 128GB)
Built in Mic*
Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
ONVIF Compliant
IP67 Weather Resistance
Optional Wall Mounts (VT-TWMT-3, VT-TWMT-A1 [reqs. VT-TJB08]), Junction Boxes (VT-TJB01, VT-TJB08), and Pendant Mounts (VT-TPDMT-A1 [reqs. VT-TJB08], VT-TPDM-2 [reqs. VT-TJB01]) Available
[See Additional Mounting Options Below]
12VDC & PoE (Power over Ethernet) Operation
Available in Ivory or Charcoal Grey (VTC-TNT8RFEB-2)
|
Image Sensor
|
1/2.7” 8.0 Megapixel [4K] Progressive Scan CMOS
|
|
Image Size
|
8 MegaPixel (3840 × 2160)
|
|
Resolution
|
Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ),
5MP (2592 ×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240
|
|
Min. Illumination
|
0.11 lux @F2.2, AGC ON; 0 lux with IR
|
|
Electronic Shutter
|
1 / 25 s ~ 1 / 100000s
|
|
Lens
|
2.8mm Fixed Iris Lens
|
|
Day/Night
|
True Day/Night by ICR
|
|
IR LEDs
|
1 Matrix Style IR
|
|
IR Distance
|
Up to 100‘
|
|
Video Compression
|
H.265 / H.264
|
|
Audio Compression
|
G.711A / G.711U
|
|
Main Stream
|
8MP [4K]/ 6MP/ 5MP(1~20fps)
|
|
Sub Stream, Third Stream
|
720P/D1/CIF (1~20fps), D1/CIF/480×240(1~20fps)
|
|
Bit Rate / Type
|
64 Kbps ~ 8 Mbps / VBR + CBR
|
|
WDR
|
Digital WDR
|
|
DNR
|
3D-DNR
|
|
Backlight Compensation
|
Yes
|
|
Highlight Compensation
|
Yes
|
|
Defog
|
Yes
|
|
Image Setting
|
ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; Adjustable through client software or browser
|
|
Analytics
|
Region Intrusion, Scene Change Detection, Line Crossing
|
|
Smart Alarm
|
Motion Detection, SD Card Error, SD Card Full
|
|
General Functions
|
Watermark, IP Filter, Video Mask, Illegal Login Lock
|
|
Region of Interest (ROI)
|
Each ROI to be configured separately
|
|
Hardware Reset
|
Yes
|
|
Analog Video Output
|
No
|
|
Audio
|
Built-in Mic*
|
|
Local Storage
|
Built-in Micro SD card slot up to 128GB
|
|
Remote Viewing
|
CMS / Web Browser / Mobile (iOS/Android)
|
|
Supported Browsers
|
Internet Explorer, Chrome and Firefox with IE Tab
|
|
Connection Protocol
|
ONVIF
|
|
Weather / Impact Resistance
|
IP67 Weather Resistance
|
|
Power Input
|
12VDC / PoE
|
|
Power Consumption
|
(12VDC) 120mA (IR Off) / 480mA (IR On)
|
|
Power Consumption (PoE)
|
< 6.5W
|
|
Dimensions and Weight
|
3.77”× 4.25” (95.7 × 108mm) Dia × H
19.4 oz. / 1.23 lbs. / 550g
|
