VTC-TNB8RFEA-2

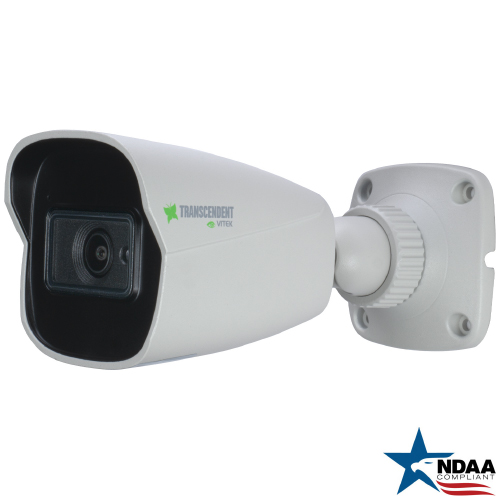

Transcendent 8MP Indoor/Outdoor WDR IP Fixed Bullet Camera with Matrix IR
1/2.8” 8.0 MegaPixel [4K] CMOS Image Sensor
8MP (3840 × 2160) [1~20fps], 6MP (3072 × 2048 ), 5MP (2592 × 1944), 720P (1280 × 720), D1, CIF, 480 × 240 [1~30fps]
2.8mm Fixed Lens
Matrix IR (up to 100’ IR Range)
True Wide Dynamic Range (120dB)
True Mechanical Day/Night function by ICR
XD-DNR (3D & 2D-DNR) Noise Reduction
Programmable Analytics: Region Intrusion Detection, Scene Change Detection, Line Crossing
H.265+ / H.265 / H.264+ / H.264 / MJPEG
MicroSD Card Slot for Local Recording (Up to 256GB)
1 Ch. Audio In + Built-in Mic*
Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
ONVIF Compliant
IP67 Weather Resistance
Wall Mount Included and Optional Junction Boxes (VT-TJB08) Available
NDAA Compliant
12VDC & PoE (Power over Ethernet) Operation
3-Year Warranty
|
Image Sensor
|
1/2.7” 8.0 Megapixel [4K] Progressive Scan CMOS
|
|
| Image Size |
8 MegaPixel (3840 × 2160)
|
|
Resolution
|
Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ), 5MP (2592 ×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240
|
|
Min. Illumination
|
0.02 lux @ F1.6, AGC ON; 0 lux with IR, 0.01lux@F1.2, AGC ON; 0 lux with IR
|
|
| Electronic Shutter |
1s ~ 1 / 100000s
|
|
Lens
|
2.8~12mm Motorized Varifocal Lens
|
|
| Day/Night |
True Day/Night by ICR
|
|
IR LEDs
|
1 Matrix IR
|
|
IR Distance
|
Up to 100‘
|
|
Video Compression
|
H.265+ / H.265 / H.264+ / H.264 /MJPEG
|
|
| Audio Compression |
G.711A / G.711U
|
|
Main Stream
|
8MP [4K] (1~20fps) / 6MP / 5MP / 720P / D1 / CIF / 480 x 240 (1~30fps)
|
|
Sub Stream, Third Stream
|
60Hz: 720P/D1/480 × 240(1~30fps), 60Hz: D1/CIF/480 × 240 (1~30fps)
|
|
| Bit Rate / Type |
Type 64 Kbps ~ 12 Mbps / VBR + CBR
|
|
| WDR |
120dB Super WDR
|
|
DNR
|
3D-DNR
|
|
| Backlight Compensation |
Yes
|
|
| Highlight Compensation |
Yes
|
|
| Defog |
Yes
|
|
Image Setting
|
ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; Adjustable through client software or browser
|
|
Analytics
|
Region Intrusion, Scene Change Detection, Line Crossing, Video Blur, Video Color Cast Detection
|
|
| Smart Alarm |
Motion Detection, SD Card Error, SD Card Full
|
|
General Functions
|
Watermark, IP Filter, Video Mask, Illegal Login Lock
|
|
Region of Interest (ROI)
|
Each ROI to be configured separately
|
|
| Hardware Reset |
Yes
|
|
Analog Video Output
|
No
|
|
| Audio |
1 Ch. Audio In + Built-in Mic*
|
|
Local Storage
|
Built-in Micro SD card slot up to 256GB
|
|
| Remote Viewing |
CMS / Web Browser / Mobile (iOS/Android)
|
|
| Supported Browsers |
Internet Explorer, Chrome and Firefox with IE Tab, and Edge in IE mode
|
|
| Connection Protocol |
ONVIF
|
|
Weather Resistance
|
Weather Resistance
|
|
Power Input
|
12VDC / PoE
|
|
Power Consumption
|
(12VDC) 350mA (IR Off) / 600mA (IR On)
|
|
Power Consumption
|
(PoE) <7W
|
|
| Dimensions / Weight |
6.60" × 2.94” 2.94” (167.6mm × 74.7mm × 74.7mm) L × W × H
|
