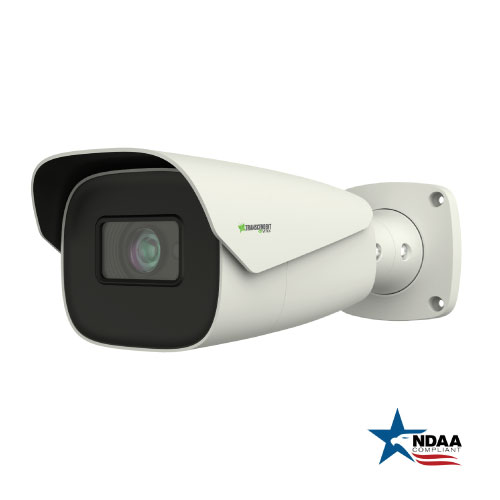

8 MegaPixel Gen. IV Advanced A.I. Motorized IP Bullet Camera
1/2.8” 8 MegaPixel [4K] Progressive Scan CMOS Sensor
NDAA Compliant
Up to 30fps live view @ 8 MegaPixel (3840 × 2160)
2.8~12mm Motorized Varifocal Lens
Matrix IR (up to 230’ IR Range)
True Wide Dynamic Range (120dB)
True Mechanical Day/Night function by ICR
XD-DNR (3D & 2D-DNR) Noise Reduction
Gen. IV Advanced Analytics: Regional Entrance / Exit Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification] Face Detection, Crowd Density, Abandoned / Missing Object, Abnormal Video
H.265+ / H.265 / H.264+ / H.264 / MJPEG
1 Ch. Audio In + 1 Ch. Audio Out* + 1 Ch. CVBS Video Out
1 Ch. Alarm In + 1 Ch. Alarm Out
Remote Viewing via CMS, Internet Explorer, iOS & Android Apps
ONVIF Compliant
MicroSD Card Slot for Local Recording (256GB)
IP67 Weather Resistance
Wall Mount Included, Optional Mounts: Junction Box VT-TJB01 [See Additional Mounting Options Below]
Available in Ivory or Charcoal (VTC-TNB8RMA4)
12VDC & PoE (Power over Ethernet) Operation
3-Year Warranty
|
Image Sensor
|
1/2.8” 8.0 Megapixel [4K] Progressive Scan CMOS
|
|
NDAA
|
Compliant Yes
|
|
Image Size
|
8 MegaPixel (3840 × 2160)
|
|
Resolution
|
8MP (3840×2160), 6MP(3072×2048), 5MP(2592×1944), 4MP(2592×1520), 2K(2560×1440 ), 3MP(2304×1296 ), 1080P(1920×1080), 720P(1280×720 ), D1, CIF, 480×240
|
|
Min. Illumination
|
0.01 lux @F1.2, AGC ON; 0 lux with IR, 0.015 lux @ F1.4, AGC ON; 0 lux with IR
|
|
Lens
|
2.8mm~12mm Motorized Varifocal
|
|
Day / Night
|
True Day / Night by ICR
|
|
IR
|
LEDs / IR Distance 4 Matrix Style IRs / Up to 230’
|
|
Video Compression
|
H.265+ / H.265 / H.264+ / H.264 / MJPEG
|
|
Audio Compression
|
G.711A / G.711U
|
|
Main-Stream
|
60Hz: 8/6/5/4MP/2K/3MP/1080P/720P(1~30fps), 50Hz: (1~25fps)
HFR:1080P 720P(60Hz: 1 60fps; 50Hz: 1~50fps)
|
|
Sub / Third Stream
|
1080P/720P/D1/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps), 720P/D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps)
|
|
Bit Rate / Type
|
64 Kbps ~ 12 Mbps / VBR, CBR
|
|
Wide Dynamic Range
|
120dB Super WDR
|
|
Other Features
|
Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset
|
|
Digital Noise Reduction
|
XD-DNR (3D-DNR & 2D-DNR)
|
|
Image Setting
|
ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; adjustable through client software / web browser
|
|
Gen. IV Advanced Analytics
|
Regional Intrusion Detection, Regional Entrance / Exit Detection, Line Crossing, Target Counting [all by Human / Motor Vehicle Classification]
Face Detection, Crowd Density, Abandoned / Missing Object, Abnormal Video, Smart Alarm Motion Detection, SD Card Error, SD Card Full
|
|
Region of Interest (ROI)
|
Each ROI to be configured separately
|
|
Audio
|
1 Ch. Audio In + 1 Ch. Audio Out*
|
|
Video Output
|
1 Ch. CVBS Video Out
|
|
Alarm 1
|
Ch. Alarm In + 1 Ch. Alarm Out
|
|
Local Storage
|
Built-in MicroSD Card Slot (up to 256GB)
|
|
Remote Viewing
|
CMS / Web Browser / Mobile (iOS/Android)
|
|
Supported Browsers
|
Internet Explorer, Chrome and Firefox with IE Tab
|
|
Connection Protocol
|
ONVIF
|
|
Ingress Protection
|
IP67
|
|
Power Input
|
12VDC / PoE
|
|
Pwr Consumption
|
12VDC, PoE 500mA (LEDs Off) / 1000mA (LEDs On), 12W
|
|
Working Environment
|
-22° ~140° / < 95% Humidity
|
|
Weight
|
39.51 oz. / 2.47 lbs. / 1.12kg (NET) 46.56 oz. / 2.91 lbs/ 1.32kg (SHIPPING)
|
|
Dimensions (L × W × H)
|
11.00” × 3.95” × 3.49” (278.3mm × 100.2mm × 88.7mm)
|
