Item Available in 5-7 Days - Overstock from Manufacturer

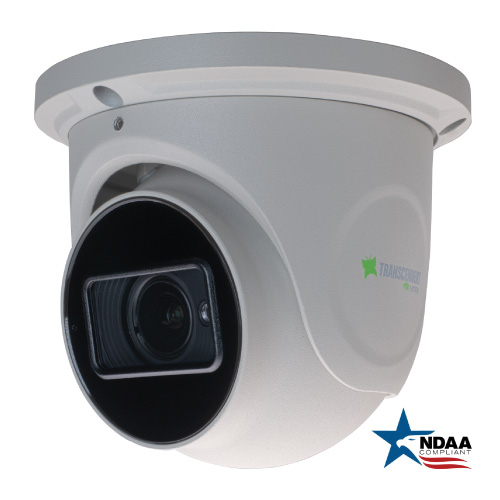

8 MegaPixel Gen. IV Advanced A.I. Motorized IP Turret Camera
1/2.8” 8 MegaPixel [4K] Progressive Scan CMOS Sensor
NDAA Compliant
Up to 30fps live view @ 8 MegaPixel (3840×2160)
2.8~12mm Motorized Varifocal Lens
Matrix IR (up to 165’ IR Range)
True Wide Dynamic Range (120dB)
True Mechanical Day / Night function by ICR
XD-DNR (3D & 2D-DNR) Noise Reduction
Gen. IV Advanced Analytics: Regional Entrance / Exiting Detection, Line Crossing, Target Counting [All by Human/ Motor Vehicle Classification] Face Detection, Crowd Density, Abandoned / Missing Object, Abnormal Video
H.265+ / H.265 / H.264+ / H.264 / MJPEG
1 Ch. Audio In + Built-in Mic*
Remote Viewing via CMS, Internet Explorer, iOS & Android Apps
ONVIF Compliant
MicroSD Card Slot for Local Recording (256GB)
IP67 Weather Resistance
Optional Junction Boxes (VT-TJB01, VT-TJB021), Wall Mounts (VT-TWM03, VT-TWMT-4) and Pendant Mounts (VT-TPDM-2 [reqs. VT-TJB01], VT-TPDM-3 [reqs. VT-TJB021]) [See Additional Mounting Options Below]
Available in Ivory or Charcoal Grey (VTC-TNT8RMA4B)
12VDC & PoE (Power over Ethernet) Operation
*Please research state, local, and federal laws regarding the implementation of audio surveillance
|
Image Sensor
|
1/2.8” 8.0 Megapixel [4K] Progressive Scan CMOS
|
|
| NDAA Compliant |
Yes
|
|
Image Size
|
8 MegaPixel (3840 × 2160)
|
|
Resolution
|
8MP (3840×2160), 6MP(3072×2048), 5MP(2592×1944), 4MP(2592×1520), 2K(2560×1440 ), 3MP(2304×1296 ), 1080P(1920×1080), 720P(1280×720 ), D1, CIF, 480×240
|
|
| Min. Illumination |
0.01 lux @F1.2, AGC ON; 0 lux with IR, 0.015 lux @ F1.4, AGC ON; 0 lux with IR
|
|
Lens
|
2.8mm~12mm Motorized Varifocal
|
|
| Day / Night |
True Day / Night by ICR
|
|
| IR LEDs / IR Distance |
2 Matrix Style IRs / Up to 165’
|
|
Video Compression
|
H.265+ / H.265 / H.264+ / H.264 / MJPEG
|
|
| Audio Compression |
G.711A / G.711U
|
|
| Main-Stream |
60Hz: 8/6/5/4MP/2K/3MP/1080P/720P(1~30fps), 50Hz: (1~25fps)
HFR:1080P 720P(60Hz: 1 60fps; 50Hz: 1~50fps)
|
|
| Sub / Third Stream |
1080P/720P/D1/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps), 720P/D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps)
|
|
| Bit Rate / Type |
64 Kbps ~ 12 Mbps / VBR, CBR
|
|
| Wide Dynamic Range |
120dB Super WDR
|
|
Other Features
|
Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset
|
|
| Digital Noise Reduction |
XD-DNR (3D-DNR & 2D-DNR)
|
|
| Image Setting |
ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; adjustable through client software / web browser
|
|
Gen. IV Advanced Analytics
|
Regional Intrusion Detection, Regional Entrance / Exit Detection, Line Crossing, Target Counting [all by Human / Motor Vehicle Classification]
Face Detection, Crowd Density, Abandoned / Missing Object, Abnormal Video, Smart Alarm Motion Detection, SD Card Error, SD Card Full
|
|
| Region of Interest (ROI) |
Each ROI to be configured separately
|
|
Audio
|
1 Ch. Audio In + Built-in Mic*
|
|
| Video Output |
NA
|
|
| Alarm |
NA
|
|
| Local Storage |
Built-in MicroSD Card Slot (up to 256GB)
|
|
| Remote Viewing |
CMS / Web Browser / Mobile (iOS/Android)
|
|
Supported Browsers
|
Internet Explorer, Chrome and Firefox with IE Tab
|
|
Connection Protocol
|
ONVIF
|
|
| Ingress Protection |
IP67
|
|
| Power Input |
12VDC / PoE
|
|
| Pwr Consumption |
350mA (LEDs Off) / 750mA (LEDs On), <8W
|
|
| Working Environment |
-22° ~140° / < 95% Humidity
|
|
Weight
|
24.69 oz. / 1.54 lbs. / .7kg (NET) 29.98 oz. / 1.87 lbs / .85kg (SHIPPING)
|
|
| Dimensions |
(Dia × H) 5.15” × 4.30” (130.8mm × 109.2mm)
|
|
| * |
*Please research local, state, and federal laws regarding the implementation and use of audio surveillance
|
|
|
|
|
|
|
|
|
|
