8MP 4K 2.8-12mm MZ Gen. III Advanced A.I

Item #
3 Year /1 Year OTC /2 Year MFG
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description

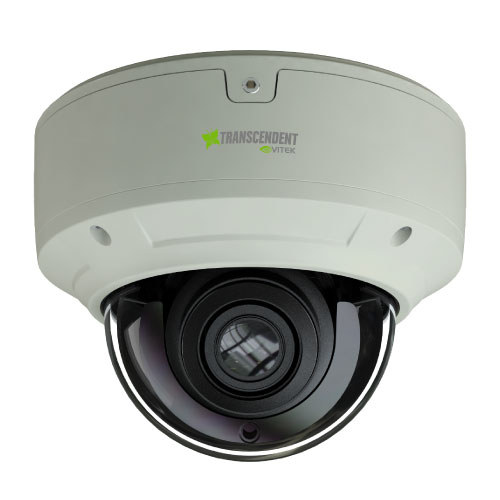

8 MegaPixel Gen. III Advanced A.I. Motorized IP Vandal Dome Camera
Transcendent Series High Definition 8 Megapixel [4K] IP Network Cameras with Gen. III Advanced Analytics offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via CMS, Internet Explorer, and iOS & Android Apps.

• 1/1.8” 8.0 Megapixel [4K] CMOS Image Sensor
•Up to 20fps live view @ 8 MegaPixel (3840×2160), 30fps @ 5/4/3MP/1080/720p/D1/CIF/480×240
• Available with 2.8~12mm Motorized Lens in Ivory or Charcoal:
VTD-TND8RMA3 (Ivory w/ 2.8~12mm)
VTD-TND8RMA3B (Charcoal w/ 2.8~12mm)
• 3 Matrix IRs (up to 165’ IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D Digital Noise Reduction)
• Gen. III Advanced Analytics: Abnormal Video, Face Detection, Regional Intrusion Detection, Regional Entrance / Exiting Detection, Line Crossing, Target Counting Detection
• 1 Ch. Audio In + Built-in Mic*
• 1 Ch. Alarm In + 1 Ch. Alarm Out
• Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (up to 256GB)
• IP67 Weather Resistance + IK10 Impact Rating
• Optional Mounts: Junction Boxes (VT-TJB01, VT-TJB021), Wall Mounts(VT-TWM03, VT-TWMT-4), Pendant Mounts (VT-TPDM-A1[use w/ VT-TJB021], VT-TPDM-3 [use with VT-TJB021])
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty

Image Sensor  1/1.8” 8.0 Megapixel [4K] CMOS Image Sensor
Image Size 8 MegaPixel (3840×2160)
Resolution 8MP(3840×2160 ), 6MP(3072×2048 ), 5MP(2592×1944), 4MP(2592 × 1520 ), 4MP(2560 × 1440 ),
3MP(2304 × 1296),  1080P(1920 × 1080 ), 720P
(1280 × 720), D1, CIF, 480 × 240
Min. Illumination 0.01 lux @ F1.2, AGC ON; 0 lux with IR, 0.02 lux@F1.6,
AGC ON; 0 lux with IR
Lens 2.8~12mm Motorized AF Lens
Day/Night True Day/Night by ICR
IR LEDs  / Range 2 Matrix / 165’
Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 /
H.264+ / H.264 / MJPEG
Audio Compression G.711A / G.711U
Main-Stream 1~20fps: 8MP, 6MP, 1~30fps: 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF, 480 x 240
Bit Rate 64Kbps ~ 12Mbps
Wide Dynamic Range (WDR) 120dB Super WDR
Digital Noise Reduction (DNR) XD-DNR (2D-DNR & 3D-DNR)
Quality VBR (Five Levels of Adjustment) / CBR (Adjustable)
Image Setting  Saturation, Brightness, Contrast, WDR, Noise reduction
Gen. III Advanced Analytics Face Detection, Target Counting, Intrusion, Region Entrance
/ Exit, Line Crossing, Scene Change, Video Blur
Smart Alarm Motion Detection, SD Card Error, SD Card Full
Region of Interest (ROI) Each ROI to be Configured Separately
Network RJ45
Audio 1 Ch. Audio In + Built-in Mic*
Alarm 1 Ch. Alarm In + 1 Ch. Alarm Out
Local Storage MicroSD Card Slot (Up to 256GB)
Remote Viewing CMS / Web Browser / Mobile (iOS/Android)
Supported Browsers Microsoft Internet Explorer
Connection Protocol ONVIF
Ingress Protection IP67
Impact Rating IK10
Power Input 12VDC / PoE
Power Consumption (12VDC) 350mA (LEDs Off) / 800mA (LEDs On)
Power Consumption (PoE) < 9.5W
Working Environment -22° ~140° / < 95% Humidity
Weight 40.21 0z, 2.51 lbs., 1140g
Dimensions: Dia x H 5.91” x 4.49” (150 mm x 114 mm)
*Please research local, state, and federal laws regarding the implementation and use of audio surveillance
