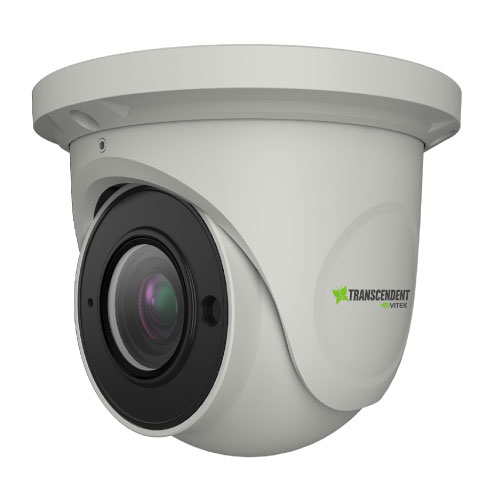

VTC-TNT8RMA3 8 MegaPixel Gen. III Advanced A.I. Motorized IP Turret Camera
8 MegaPixel H.265 30fps Motorized Auto Focus Varifocal Turret/Ball Camera w/Matrix IR - 165' IR Range, 2.8-12mm, Micro SD Card support, Target Counting, Face Detection + Full Analytic suite, Metal Housing, 12VDC/PoE, IP67 - Charcoal
• 1/1.8” 8.0 Megapixel [4K] CMOS Image Sensor
•Up to 20fps live view @ 8 MegaPixel (3840×2160), 30fps @ 5/4/3MP/1080/720p/D1/CIF/480×240
• Available with 2.8~12mm Motorized Lens in Ivory or Charcoal:
VTC-TNT8RMA3 (Ivory w/ 2.8~12mm)
VTC-TNT8RMA3B (Charcoal w/ 2.8~12mm)
• 2 Matrix IRs (up to 165’ IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D Digital Noise Reduction)
• Gen. III Advanced Analytics: Abnormal Video, Face Detection, Regional Intrusion Detection, Regional Entrance / Exiting Detection, Line Crossing, Target Counting Detection
• 1 Ch. Audio In + Built-in Mic*
• Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (up to 256GB)
• IP67 Weather Resistance
• Optional Junction Boxes (VT-TJB01, VT-TJB021), Wall Mounts (VT-TWM03, VT-TWMT-4), Pendant Mounts (VT- TPDM-2 [use w/ VT-TJB01], VT-TPDM-3 [use with VT-TJB021]) Available
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
Image Sensor 1/1.8” 8.0 Megapixel [4K] CMOS Image Sensor
|
Image Size 8 MegaPixel (3840×2160)
|
Resolution 8MP(3840×2160 ), 6MP(3072×2048 ), 5MP(2592×1944), 4MP(2592 × 1520 ), 4MP(2560 × 1440 ),
3MP(2304 × 1296), 1080P(1920 × 1080 ), 720P
(1280 × 720), D1, CIF, 480 × 240
|
Min. Illumination 0.01 lux @ F1.2, AGC ON; 0 lux with IR, 0.02 lux@F1.6,
AGC ON; 0 lux with IR
|
Lens 2.8~12mm Motorized AF Lens
|
Day/Night True Day/Night by ICR
|
IR LEDs / Range 2 Matrix / 165’
|
Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 /
H.264+ / H.264 / MJPEG
|
Audio Compression G.711A / G.711U
|
Main-Stream 1~20fps: 8MP, 6MP, 1~30fps: 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF, 480 x 240
|
Bit Rate 64Kbps ~ 12Mbps
|
Wide Dynamic Range (WDR) 120dB Super WDR
|
Digital Noise Reduction (DNR) XD-DNR (2D-DNR & 3D-DNR)
|
Quality VBR (Five Levels of Adjustment) / CBR (Adjustable)
|
Image Setting Saturation, Brightness, Contrast, WDR, Noise reduction
|
Gen. III Advanced Analytics Face Detection, Target Counting, Intrusion, Region Entrance
/ Exit, Line Crossing, Scene Change, Video Blur
|
Smart Alarm Motion Detection, SD Card Error, SD Card Full
|
Region of Interest (ROI) Each ROI to be Configured Separately
|
Network RJ45
|
Audio 1 Ch. Audio In + Built-in Mic*
|
Local Storage MicroSD Card Slot (Up to 256GB)
|
Remote Viewing CMS / Web Browser / Mobile (iOS/Android)
|
Supported Browsers Microsoft Internet Explorer
|
Connection Protocol ONVIF
|
Ingress Protection IP67
|
Power Input 12VDC / PoE
|
Power Consumption (12VDC) 350mA (LEDs Off) / 600mA (LEDs On)
|
Power Consumption (PoE) < 9.5W
|
Working Environment -22° ~140° / < 95% Humidity
|
Weight 22.93 oz. / 1.43 lbs. / 650g
|
Dimensions: Dia x H 4.29” × 5.12” (109 × 130mm)
|
*Please research local, state, and federal laws regarding the implementation and use of audio surveillance
|
