8.MP 2.8mm TVI/AHD Dome IP67 VITEK

8.MP 2.8mm TVI/AHD Dome IP67 VITEK

Item #
ADA8VT
Brand
Vitek
Model
VTD-THD8R2

Color
White
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description

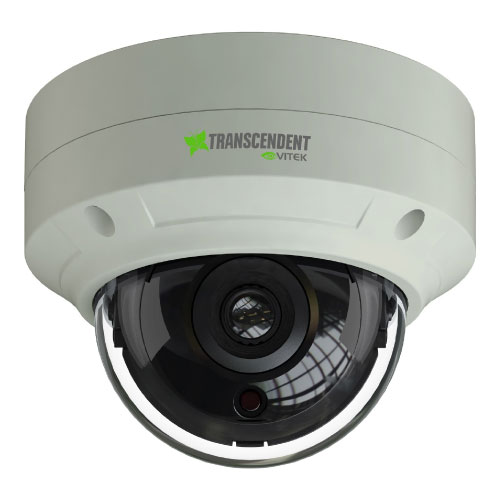

Transcendent Series 8 MegaPixel [4K] Indoor/Outdoor 4-in-1 HDA Fixed Vandal Dome Camera

Transcendent Series High Definition HD-TVI, AHD, CVI, and CVBS 4-IN-1 Cameras deliver up to 8.0 MegaPixel [4K] resolution and offer unprecedented performance and value. These simple, easy to install, attractively styled, analog HD Cameras transmit over your existing Coaxial cable at distances up to 1500’.


• 1/2.5” 8MegaPixel [4K] Progressive Scan CMOS image sensor
• High Definition Analog (HDA) / HD-TVI / AHD / HD-CVI / CVBS
• 8MP@15fps, 5MP@20fps, 4MP@30fps High Res, True Color
• Supports OSD Menu
• Digital Wide Dynamic Range (D-WDR)
• 2.8mm Fixed Iris Lens
• 16 SMD Type IR LEDs with up to 65’ IR Range
• True Mechanical Day/Night function by ICR
• 3D-DNR (Digital Noise Reduction)
• IP67 Weather Resistance + IK10
• Supports Up The COAX Control (CoC)
• Over 1500’ HD Video Transmission (Depending on cable characteristics and integrity
• Optional Junction Box (VT-TJB03A), Wall Mount (VT-TWMT3) and In-Ceiling Semi Flush Mount (VT-TFMT-S) Available
• 12VDC Operation


Image Sensor
1.25” 8.0 MegaPixel Progressive Scan CMOS Sensor

Signal System
NTSC/PAL

Effective Pixels
3840 x 2160

Resolution
HD-TVI & AHD: 8.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H

Video Output
HD-TVI / AHD / CVI / CVBS (Selectable)

Frame Rate
8MP@15fps / 5MP@20fps / 4MP@30fps

Lens
2.8mm – Fixed

Day/Night
True Day/Night by ICR

Min. Illumination Color
0.001 lux@F1.2, AGC ON / B/W: 0 lux (with IR ON)

IRs
16 SMD Type IR LEDs

IR Distance
Up to 65’

Dynamic
(Smart) IR YES

S/N Ratio
=52 dB (AGC Off)

Wide Dynamic Range
D-WDR (Digital Wide Dynamic Range)

Digital Noise Reduction
3D-DNR

Auto White Balance
YES (AWB)

Back Light Compensation
YES (BLC)

Up the COAX Control (COC)
YES

Transmission Distance
Up to 1500’ (Depending on Cable Characteristics and Integrity)

Power Input
12VDC

Power Consumption IR Off
< 2W / IR On: < 5W

Resistance
IP67 Weather (Ingress) + IK10 Impact

Operation Conditions
-4°~122° / 10%~90% Humidity

Weight
21.16oz / 1.32lb / 600g

Dimensions
4.59”× 3.54” (117mm × 90mm) Dia× H
