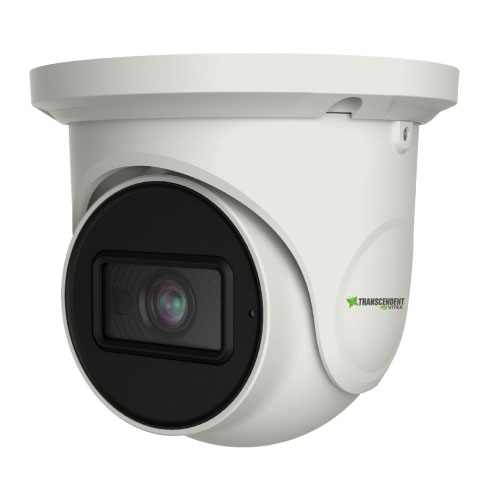

VTC-TNT8RFA3-2
8 MegaPixel Gen. III Advanced A.I. Fixed IP Turret Camera
• 1/2.8” 8.0 Megapixel [4K] CMOS Image Sensor
•Up to 20fps live view @ 8 MegaPixel (3840×2160), 30fps @ 5/4/3MP/1080/720p/D1/CIF/480×240
• Available with 2.8mm Fixed Lens in Ivory or Charcoal:
VTC-TNT8RFA3-2 (Ivory w/ 2.8mm)
VTC-TNT8RFA3B-2 (Charcoal w/ 2.8mm)
• 1 Matrix IR (up to 100’ IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D Digital Noise Reduction)
• Gen. III Advanced Analytics: Abnormal Video, Face Detection, Regional Intrusion Detection, Regional Entrance / Exiting Detection, Line Crossing, Target Counting Detection
• 1 Channel Audio In + Built-in Mic*
• Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (up to 256GB)
• IP67 Weather Resistance
• Optional Junction Boxes (VT-TJB08, VT-TJB01), Wall Mounts (VT-TWMT-3, VT-TWMT-A1), Pendant Mounts (VT-TPDMT-A1 [reqs. VT-TJB08], VT-TPDM-2 [reqs. VT-TJB01] Available
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
|
Image Sensor
|
1/2.8” 8.0 Megapixel [4K] CMOS Image Sensor
|
|
Image Size
|
8 MegaPixel (3840×2160)
|
|
Resolution
|
8MP(3840×2160 ), 6MP(3072×2048 ), 5MP(2592×1944), 4MP(2592 × 1520 ), 4MP(2560 × 1440 ),
3MP(2304 × 1296), 1080P(1920 × 1080 ), 720P
(1280 × 720), D1, CIF, 480 × 240
|
|
Min. Illumination
|
0.01 lux @ F1.2, AGC ON; 0 lux with IR, 0.02 lux@F1.6,
AGC ON; 0 lux with IR
|
|
Lens
|
2.8mm Fixed Iris Lens
|
|
Day/Night
|
True Day/Night by ICR
|
|
IR LEDs
|
Range 1 Matrix / 100’
|
|
Video Compression Smart
|
H.265 / H.265+ / H.265 / Smart H.264 /
H.264+ / H.264 / MJPEG
|
|
Audio Compression
|
G.711A / G.711U
|
|
Main-Stream
|
1~20fps: 8MP, 6MP, 1~30fps: 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF, 480 x 240
|
|
Bit Rate
|
64Kbps ~ 12Mbps
|
|
Wide Dynamic Range (WDR)
|
120dB Super WDR
|
|
Digital Noise Reduction (DNR)
|
XD-DNR (2D-DNR & 3D-DNR)
|
|
Quality
|
VBR (Five Levels of Adjustment) / CBR (Adjustable)
|
|
Image Setting
|
Saturation, Brightness, Contrast, WDR, Noise reduction
|
|
Gen. III Advanced Analytics
|
Face Detection, Target Counting, Intrusion, Region Entrance
/ Exit, Line Crossing, Scene Change, Video Blur
|
|
Smart Alarm
|
Motion Detection, SD Card Error, SD Card Full
|
|
Region of Interest (ROI)
|
Each ROI to be Configured Separately
|
|
Network
|
RJ45
|
|
Audio
|
1 Ch. Audio In + Built-in Mic*
|
|
Local Storage
|
MicroSD Card Slot (Up to 256GB)
|
|
Remote Viewing
|
CMS / Web Browser / Mobile (iOS/Android)
|
|
Supported Browsers
|
Microsoft Internet Explorer
|
|
Connection Protocol
|
ONVIF
|
|
Ingress Protection
|
IP67
|
|
Power Input
|
12VDC / PoE
|
|
Power Consumption
|
(12VDC) 350mA (LEDs Off) / 600mA (LEDs On)
|
|
Power Consumption
|
(PoE) < 9W
|
|
Working Environment
|
-22° ~140° / < 95% Humidity
|
|
Weight
|
16.93 oz. / 1.06 lbs. / 480g
|
|
Dimensions: L × W × H
|
3.77” x 4.25” (95.7 × 108mm)
|
|
*
|
Please research local, state, and federal laws regarding the implementation and use of audio surveillance
|
