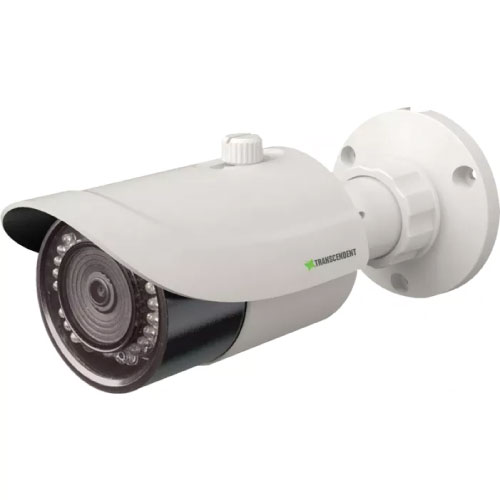

VTC-THB8R2
Transcendent Series 8 MegaPixel [4K] Indoor/Outdoor 4-in-1 HDA Fixed Bullet Camera
• 1/2.5” 8MegaPixel [4K] Progressive Scan CMOS image sensor
• High Definition Analog (HDA) / HD-TVI / AHD / HD-CVI / CVBS
• 8MP@15fps, 5MP@20fps, 4MP@30fps High Res, True Color
• Supports OSD Menu
• Digital Wide Dynamic Range (D-WDR)
• 2.8mm Fixed Iris Lens
• 1 Matrix IR with up to 100’ IR Range
• True Mechanical Day/Night function by ICR
• 3D-DNR (Digital Noise Reduction)
• IP67 Weather Resistance
• Supports Up The COAX Control (CoC)
• Over 1500’ HD Video Transmission (Depending on cable characteristics and integrity)
• Wall Mount Included and Optional Junction Box (VT-TJB08) Available
• 12VDC Operation
|
Image Sensor
|
1.25” 8.0 MegaPixel Progressive Scan CMOS Sensor
|
|
| Signal System |
NTSC/PAL
|
|
Effective Pixels
|
3840 x 2160
|
|
Resolution
|
HD-TVI & AHD: 8.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H
|
|
| Video Output |
HD-TVI / AHD / CVI / CVBS (Selectable)
|
|
Frame Rate
|
8MP@15fps / 5MP@20fps / 4MP@30fps
|
|
| Lens |
2.8mm – Fixed
|
|
| Day/Night |
True Day/Night by ICR
|
|
Min. Illumination Color:
|
0.001 lux@F1.2, AGC ON / B/W: 0 lux
(with IR ON)
|
|
IRs
|
1 Matrix
|
|
IR Distance
|
Up to 100’
|
|
| Dynamic (Smart) IR |
YES
|
|
| S/N Ratio |
=52 dB (AGC Off)
|
|
| Wide Dynamic Range |
D-WDR (Digital Wide Dynamic Range)
|
|
| Digital Noise Reduction |
3D-DNR
|
|
| Auto White Balance |
YES (AWB)
|
|
| Back Light Compensation |
YES (BLC)
|
|
| Up the COAX Control |
(COC) YES
|
|
Transmission Distance
|
Up to 1500’ (Depending on Cable Characteristics
and Integrity)
|
|
| Power Input |
12VDC
|
|
| Power Consumption IR Off: |
< 2W / IR On: < 5W
|
|
| Weather Resistance |
IP67
|
|
| Operation Conditions |
-4°~122° / 10%~90% Humidity
|
|
| Weight |
15.52oz / .97lb / 440g
|
|
Dimensions
|
6.59" × 2.93" × 2.93" (74.5mm × 74.5mm × 167mm) W × H × L
|
