System Information
|
Model

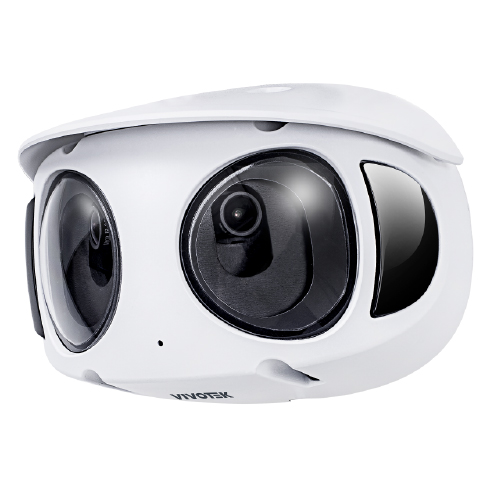

MS9390-EHV-v2
CPU
Multimedia SoC (System-on-Chip)
Flash
eMMC 8GB
RAM
DDR4 2GB
|
|
| Camera Features |
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
4864x1632 (8MP)
Lens Type
Fixed-focal
Focal Length
f = 2.8 mm
Aperture
F1.2
Iris Type
Fixed iris
Field of View
180° (Horizontal)
50° (Vertical)
180° (Diagonal)
Shutter Time
1/30 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 20 meters with Smart IR , IR LED*8
Minimum Illumination
0.018 lux @ F1.2 (Color), 30IRE
<0.01 lux @ F1.2 (B/W)
0 lux with IR illumination on
Tilt Range
20°
Storage
Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Built-in Installation Aids
Pixel calculator
|
|
Video
|
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 4864x1632
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
57.9 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance (auto, panorama, snow), image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Privacy mask; Pixel calculator; Lens alignment; Scheduled profile settings
|
|
Audio
|
Audio Capability
One-way Audio
Audio Compression
G.711, G.726, MPEG-2 AAC-LC
Audio Interface
Built-in microphone
Effective Range
5 meters
|
|
| Network |
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
|
|
AI Analytics
|
Compute Capability
Built-in CNN acceleration module
Vision Object Analytics
Object Detection: people, vehicle (4-wheeled, 2-wheeled);
Attribute Extraction: people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color);
Re-Search Extraction;
Path Extraction
Event Application
Smart Motion Detecion (Five-window video motion detection, people detection, vehicle detection, time filter);
Smart VCA * (Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detection, parking violation detection*, restricted zone detection*)
*License required. Please access https://license.vivotek.com/ for free trial license.
Applications
Deep Learning VCA (Smart Motion Detection, Smart VCA)
|
|
| Solution Integration |
Applications
Trend Micro IoT Security (3-year free trial)
|
|
| Alarm and Event |
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via email, camera link, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
|
|
General
|
Connectors
RJ-45 cable connector for 10/100 Mpbs Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3at PoE Class 4
Power Consumption
Max: 20 W / 13.5W (IR on/ IR off)
Dimensions
165 x 112 x 97 mm (w/o sunshield)
165 x 100 x 119 mm (w/ sunshield)
Weight
1.2 kg
Certifications
EMC: CE (EN 55032, EN 55024 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020),
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471);
Environment: IK10 (IEC 62262), IP66 (IEC 60529)
IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Operating Temperature
Starting Temperature:
-30°C ~ 55°C (-22°F ~ 131°F)
Working Temperature:
-40°C ~ 55°C (-40°F ~ 131°F) (IR off)
-40°C ~ 50°C (-40°F ~ 122°F) (IR on)
Humidity
90%
Warranty
36 months
|
|
| System Requirements |
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
|
|
| Included Accessories |
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack, sunshield
|
|
| DORI (EN 62676-4 Standard) |
Detect (25PPM/ 8PPF)
80.5 m (264.2 ft)
Observe (63PPM/ 19PPF)
32.2 m (105.7 ft)
Recognize (125PPM/ 38PPF)
16.1 m (52.9 ft)
Identify (250PPM/ 76PPF)
7.8 m (25.7 ft)
|
