8MP 180* Multi-Sensor IR IP66 VIVOTEK

Item #

CIF08V

Brand

Vivotek

Model

MS9390-HV

Color

White

Warranty

2 Year

Condition

Retail Box

If out of stock

3 to 5 Days

Product Description

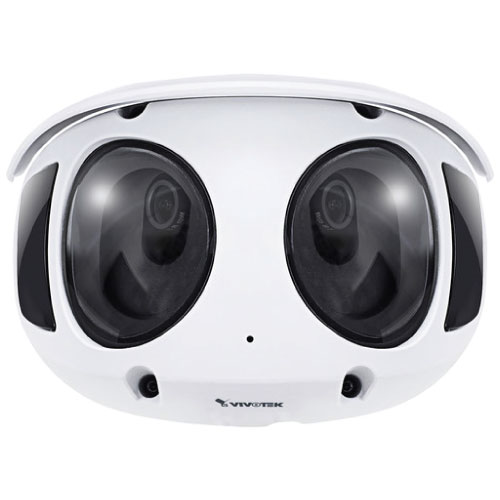

Monitor an outdoor area with the MS9390-HV 8MP Outdoor 180° Panoramic Multi-Sensor Network Dome Camera with Night Vision from Vivotek.

This dual-sensor camera captures 4512 x 1728 resolution video at 30 fps. It is equipped with two 2.8mm fixed lenses to offer a 180° panoramic horizontal field of view. In addition, the camera delivers a night vision range up to 66'. One-way audio is possible thanks to a built-in microphone. An on-board memory card slot accepts microSD/SDHC/SDXC cards up to 64GB. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This device is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. It has an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at high risk of vandalism.

8MP Panoramic View

Panoramic IR Illumination

Specifications

• Multimedia SoC CPU
• Dual-sensor design
• H.265, H.264, and MJPEG video compression
• 4 simultaneous streams
• Smart Stream III optimizes bandwidth efficiency
• Supreme Night Visibility (SNV)
• Electronic image stitching
• Removable IR cut filter for day and night functionality
• Smart IR
• WDR Pro
• 3D-DNR
• 46 dB S/N ratio
• 91 dB dynamic range
• Image settings include time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, and privacy masks
• Alarm triggers include motion detection, manual trigger, periodic trigger, system boot, recording notification, camera tampering detection, audio detection, and microSD card life expectancy
• Alarm events include event notifications and file uploads using HTTP, SMTP, FTP, NAS server, and microSD card
• Audio effective range up to 16'
• ePTZ delivers 48x digital zoom
• 20° tilt range
• VAST VMS
• Remote view on 3GPP-compatible mobile devices
• Live viewing for up to 10 clients
• LED indicators for system power and status
• Compatible with Microsoft Windows 7 & 8, Internet Explorer 10 & 11, VLC player 1.1.11 or above, and QuickTime 7 or above
• IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at high risk of vandalism
• Sunshield included
• PTZ Protocol Control over Coax, Pelco D / Pelco P
• CE, LVD, FCC Class A, VCCI, C-Tick, and UL certified
