Product Description

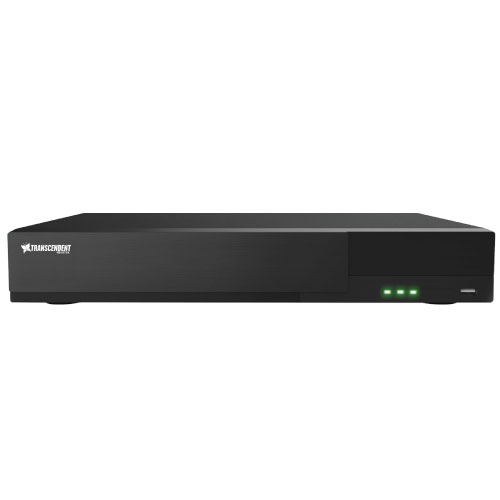

VT-TNR818P(2) (Transcendent 8 Channel 8 MegaPixel (4K) H.265 Real Time Network Video Recorder with 4K Output and 8 Port POE Switch)
•8 Channel Stand-alone Real-time IP Network Video Recorder
•Full 8 MegaPixel (4K) Real-time recording (240fps) with 240fps playback
•4K HDMI & VGA Video Outputs
•H.265 / H.264 Video Compression
•Plug and Play & Auto configuration for many leading ONVIF compliant IP Camera models
•Internal 8-Port PoE Switch
•1 Gigabit LAN Port
•Pentaplex: Live Display / Record / Playback / Backup / Remote Access
•1 Internal SATA2/SATA3 HDD Slot supporting up to 6TB (1 x 6TB HDD) Internal Storage
•Network Based PTZ Control
/>•Applications for iOS? & Android?
•Remote Viewing over the Internet via Web Browser or LAN
•Mac OS? Client & CMS Central Management Software Included
•Supports both Dynamic and Static IP Addresses
•Web-based remote configuration
•Control locally via USB Mouse or with the Included IR Remote control
•3 Year Warranty
Video Input / Resolution 8 IP Channels up to 8 MegaPixel (4K)
Main Monitor Output 1 x 4K HDMI / 1 x 1080P VGA
Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Acess
Recording Compression H.265 / H.264
OS Embedded Linux
Recording 240fps (30fps per channel)
Audio over IP Inputs 8 (1 Audio Channel per IP Camera over IP)
Local Audio In/Out IN: RCA x 1CH / OUT: RCA x 1CH
Two-Way Audio YES
Encode CBR
Quality Levels 11 level (According to Bit Rate)
Recording Modes Manual / Timer / Motion / Sensor
File Management Reserving time, Redundancy, Dual stream recording
Local Playback 8CH
Search Time sliced image search, Time/Calendar search, Event (Motion, External alarm), Tag search
Alarm Modes Sensor, Motion, Video loss, IP conflict, Disk error, Illegal access, Network disconnection
Alarm Inputs IP Camera Dependent (No Local Input)
Alarm Triggering Record, Snap, PTZ move, Alarm out, E-mail, etc
Network Interface RJ45 x 1
POE ports RJ45 x 8, with POE
PoE Standard 802.3af 15W max per port
Total PoE Budget 100W all ports
Bit Rate (Per Camera) 12Kbps ~ 10 Mbps (Adjustable)
Total Bandwidth 50Mbps Incoming / 50Mbps Outgoing
Dual-stream Individual Network Video Stream and local recording stream, set seperately
Network Protocols TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, Email, UPNP, NAT, Telnet
Internet-streaming Total 33 task resources (Local Remote) 8 CH IE playback
Remote Viewing CMS / Web Browser / Mobile Platforms
Remote Users 10 Simultaneous Online Users
Backup Network, USB
SATA HDD SATA x 1, max to 10TB each
PTZ Protocol Through Network
USB USB 2.0 x 2 (for mouse and USB backup device)
Power Consumption <5W
Power Supply 48V/2.5A
Working Environment 32?~122?F @ 10% ~ 90% RH
Weight 4.85lbs (2.2kg)
Dimensions (WxHxD) 10.43? x 1.77? x 8.07? (265mm?45mm?205mm)
