8 CH NVR W/8 PoE 6MP H.265 Vitek

Item #

NVVT081

Brand

Vitek

Model

VT-TNR818PL

Color

Black

Warranty

2 Year /1Year OTC/1Year MFG

Condition

Retail Box

If out of stock

While Supplies Last

Add On Products

2 MegaPixel License Plate Recognition IP

CIB21Z1

Product Description

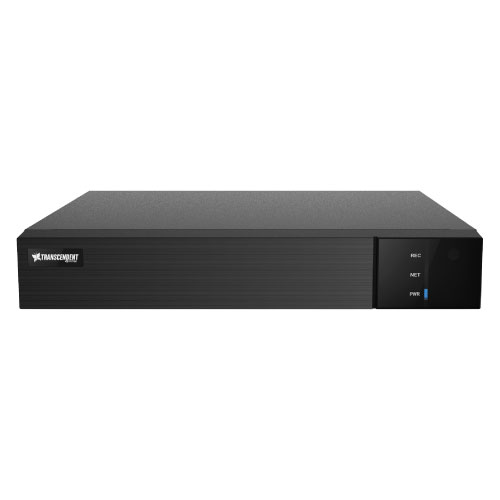

VT-TNR818PL

8 Channel 6 MegaPixel Real Time PoE Network Video Recorder

8CH NVR 6MP@20fps, 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF @20fps(NTSC/PAL), 5MP or lower @30fps/25fps(NTSC/PAL) 40Mbps ,1 Internal SATA2/3 HDD Slot supporting up to 10TB (1 × 10TB HDD), HDMI, VGA, 8 PoE Ports

8 Channel Stand-alone Real-time IP Network Video Recorder w/ 1080P Hi Res Display
Video Input: 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF

HDMI & VGA Video Output
HDMI × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768

Recording Res: 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
Frame Rate: 6MP @20fps(NTSC/PAL), 5MP or lower @30fps/25fps(NTSC/PAL)
H.265S / H.265+ / H.265 / H.264 Video Compression
8 Ch. Simultaneous Playback
Pentaplex: Live Display / Record / Playback / Backup / Remote Access
8 Channel IPC Audio Input (1-Way Audio): HDMI Supported [No Local Output]
Audio Compression: G.711(U/A)
Decoding Capability: Live View / Playback — 1Ch. 6MP, 4Ch. 720P
Video Content Analytics(VCA): Object Missing, Region Intrusion, Tripwire, Exception
Supports License Plate Recognition
Plug and Play & Auto Configuration for Leading ONVIF Compliant IP Camera Models
Multi-mode recording: Manual / Timer / Motion / Sensor / Smart Events
Alarm Modes: Motion /Sensor Detection, A.I. Event, Temp., Exception Alarm, Mask
Internal 8-Port PoE Switch
1 LAN Port
USB 2.0 × 2 (Rear)
1 Internal SATA2/3 HDD Slot supporting up to 10TB (1 x 10TB HDD)
Control locally via included USB Mouse or with Optional IR Remote Control
Supports NAT Function and QR Code Scanning by Mobile Phones
DHCP, DDNS, PPPoE network protocol
Power Consumption: <6W (W/out HDD), Supply: DC 48V/2.5A
2-Year Warranty


Video Input / Resolution	8 IP Channels up to 6 MegaPixel 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF

Main Monitor Output	HDMI × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768

Multi Operation	Pentaplex: Live Disp./Record/Playback/Backup/Remote Access

Recording Compression	H.265S / H.265+ / H.265 / H.264

OS	Embedded Linux

Recording	6MP @20fps(NTSC/PAL), = 5MP @30fps/25fps(NTSC/PAL)

Audio	8 Channel IPC Audio Input (Supported via HDMI)

Audio Compression	G.711(U/A)

Recording Stream	Dual Stream Recording

Recording Modes	Manual / Timer / Motion / Sensor / Analytics

Simultaneous Playback	Max. 8 Ch.

Playback Search Time	Slice / Time / Event / Tag Search / Smart Search

Smart Search	Highlighted Color Displays the Recording in a Certain Time Period, Different Colors Refer to Dif. Events

Playback Function	Play, Pause, Fast Forward / Back, Digital Zoom, Smart Events

Alarm Modes	Manual, Sensor, Motion, Exception, Smart Events

Alarm Linkage	Record, PTZ, Cruise, Alarm Out, Pop-up Window, Email, Buzzer, App Push

Alarm Input / Output	Supports IP Camera Input / Output

Alarm Triggering	Record, Snapshot, Buzzer, Preset, E-mail

VCA (Video Content Analytics)	Object Missing, Region Intrusion, Tripwire, Exception

License Plate Recognition	YES

POS Information Overlay	YES – On Live View and Playback

Decoding	Live View / Playback – 1 Ch. 6MP / 4 Ch. 720P

Network Protocol	DHCP, DNS, PPPoE

Network Bandwidth	40Mbps Incoming / 40Mbps Outgoing

PoE Standard	IEEE802.3af

PoE Port	RJ45 100M × 8

Mobile Device	iOS, Android

SATA HDD Storage	SATA2.0/3.0 × 1 (Max 10TB)

Network Backup	YES

Local Backup	U Disk, USB Mobile HDD

USB	USB 2.0 × 2 (Rear)

Remote Control	Optional

Power Consumption / Supply	< 6W (Without HDD) / DC 48V / 2.5A

PoE Output Power	= 80W

Dimensions (W × D × H)	10.04 × 8.74 × 1.66” / 255 × 222 × 42mm

Weight without HDD Net / Gross	1.79lbs / 3.65lbs (.81kg / 1.66kg)
