6MP 360* Surround View Vitek

6MP 360* Surround View Vitek

Item #
CIF60VT
Brand
Vitek
Model
VTD-TND6FPN

Color
White
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
While Supplies Last
Add On Products
Product Description

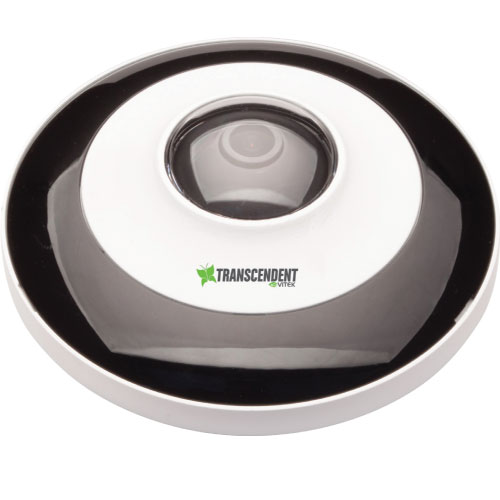

The VITEK Transcendent Series 6 Megapixel Panoramic Fisheye Network Camera enables complete visual coverage of a 360 degree area.
Complete image may be split or de-warped into 3 separate images which can be manipulated for closer inspection by digital Pan Tilt and zoom within each divided image. Features include Infrared LEDs for viewing in total darkness, 2-Way Audio and a micro SD card slot for local recording. One or more can be used as an overview in a sophisticated network video solution or as an All-in-One Video Surveillance system with Mobile applications supporting Virtual Reality mode.

Specifications

• Image Sensor 1/2.9” 6.0 MegaPixel CMOS Image Sensor
• Electronic Shutter 1/25 s ~ 1/100000 s
•  IR LEDs 6 High Power Covert IR LEDs
• IR Distance 0’ IR Range
• Day & Night True Day/Night by ICR
•  WDR Digtal WDR (D-WDR)
•  BLC Yes
•  DNR XD-DNR (2D-DNR + 3D-DNR)
• Slow Shutter Yes
• Video Compression H.265 / H.264 / MJPEG
• Encoding Type VBR (five levels adjustable) / CBR
• Smart Encoding Support low bitrate, low delay; support ROI coding & SVC technology; support self-adapative transmission bitrate as the network environment
• Video Bit Rate 64 Kbps ~ 16MKbps
• Audio Compression G.711A /G. 711Mu
• Audio Bit Rate 8Kbps ~ 48 Kbps
• Main Stream Max. Frame Rate Fisheye / Panorama+3 PTZ: 30fps @ (2160×2160, 1920×1920, 1440×1440), 30fps @ (1920×1080), 30fps @ (960×540)
• Max. Image Size 2160 x 2160 Pixels
• Image Settings ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
• Network RJ45
• Video Output CVBS video output (BNC × 1)
• Audio Built-In MIC × 1, MIC OUT × 1*
• Storage Card Support TF card, up to 128GB
• RS485 Yes
• Alarm 1 CH alarm input; 1 CH alarm output
• Remote Monitoring IE browsing, CMS remote control
• Online Connection Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
• Network Protocol TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
• Storage MicroSD Card for local EDGE storage / network remote storage
• Smart Alarm Motion alarm, sensor alarm
• PoE Yes
• Weather Resistance IP66
• Power Supply 12VDC / PoE (Dual Voltage
•  Power Consumption <12W
• Operating Environment 14ºF~122ºF (-10º~50ºC) / 10~90% RH
•  Weight 15.24oz. / 0.95oz. / 432g
• Dimensions 1.54” x 5.12” (39×130mm)
