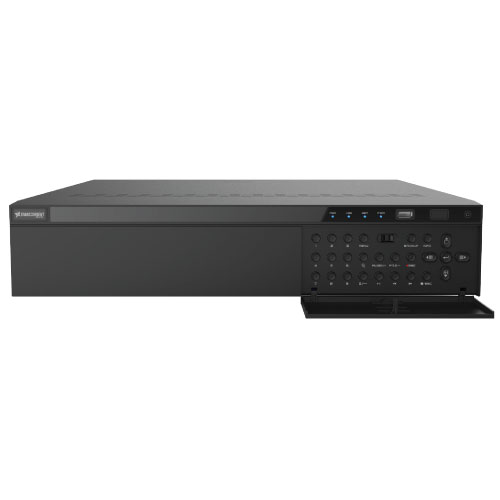

64CH Vitek NVR 4K Output 8x HD RAID

64CH Vitek NVR 4K Output 8x HD RAID

Item #
NVVT64R
Brand
Vitek
Model
VT-TNR6480E1

Color
Black
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
While Supplies Last
Add On Products
Product Description

Transcendent Series Network Video Solutions combine the simplicity of Stand Alone, Plug and Play Recorders and surveillance cameras with professional features and versatile design options. Available in 4, 8, 16, 32, and 64 channel configurations, along with 64 & 128ch Enterprise versions, these simple to use and easy to install NVRs support High Definition IP security cameras up to 8 Megapixel.

A perfect pairing with Transcendent IP Cameras for quick, professional installation offering a variety of viewing options such as Central Monitoring (CMS) and Internet Explorer along with simple yet intuitive IOS and Android apps. Both the Transcendent TVI and Network recorders share the same client, CMS viewing platform and Mobile apps.

Camera options include fixed, varifocal and vandal / weather resistant models.

Specifications

• Video Inputs / Resolution 64 Channels Supporting up to 8 MegaPixels @ 30fps Max
• Main Monitor Output HDMI × 2 : 1 × 3840 × 2160 / 1920 × 1080 / 1280 × 1024 , 1 × 1920 × 1080 / 1280 × 1024, VGA × 1: 1920 × 1080 / 1280 × 1024
• Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• Recording 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P
• Compression Standard H.265 / H.264
• OS Embedded Linux
• Audio 64 CH IPC Dependent
• Local Audio In / Out IN: RCA × 1CH / OUT: RCA × 1CH
•  Two-Way Audio YES
• Encode CBR/VBR
• Quality Levels 11 level (According to Bit Rate)
• Working Environment 14ºF~122ºF (-10º~50ºC) / 10~90% RH
• Recording Modes Manual / Timer / Motion / Sensor
• File Management Reserving time, Redundancy, Dual stream recording
• Local Playback 16 ch.
• Search Time sliced image search, Time/Calendar search, Event (Motion, External alarm), Tag search
• Supported Analytics Object Removal/Museum Search, Exception, Line Crossing, and Area Intrusion Detection
• De-Warping Fish Eye 360º Camera De-Warping with Single Overall and 3-way Division
• Alarm Modes Manual / Sensor / Motion / Exception
• Alarm Inputs / Outputs 8 CH local alarm input, supporting IPC alarm input / 4 CH Output
• Alarm Triggering Record / Snap / Preset / E-mail
• Network Interface RJ45 10 / 100 / 1000 Mbps × 2
• Bit Rate (Per Camera) 512Kbps ~ 10 Mbps (Adjustable)
• Dual-stream Individual Network Video Stream and local recording stream, set separately
• Network Protocol Up to 10 users online / iOS, Android
•  Network Web Client / Mobile Device OS Up to 10 users online / iOS, Android
• PTZ Protocol Through Network or RS485 (Pelco D / Pelco P)
• Disk Array RAID0, RAID1, RAID5, RAID6, RAID10
• USB USB 2.0 × 2 (front panel, rear panel), USB × 3.0 × 1 (rear panel)
• Remote Controller YES
• Power Consumption / Supply = 15W (Without HDD) / ATX 250W
• Dimensions (WxHxD) 17.52” × 17.12” × 3.54” (W × D × H)

If you can't find what you're looking for here, please contact your sales representative.
