5MP 360*Surround View Compact VIVOTEK

5MP 360*Surround View Compact VIVOTEK

Item #
CIF51V
Brand
Vivotek
Model
FE8182

Color
White
Warranty
2 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description

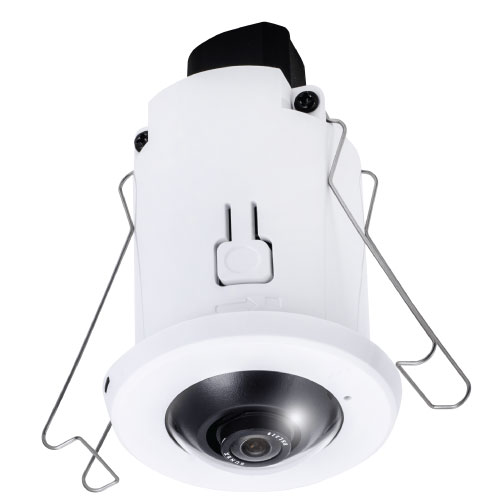

Designed for unobtrusive surveillance, the 5MP Fisheye Mini Dome Camera from Vivotek can be recess-mounted into the wall, ceiling, or floor for versatile placement. When the camera is installed on a wall, it provides a 180° panoramic view, and when it is installed on the floor or ceiling it produces a 360° surround view, without any blind spots. This full video coverage of wide, open areas makes the camera a suitable solution for airport lobbies, shopping malls, and retail stores. Equipped with a 1/3.2" progressive-scan CMOS sensor, the camera offers up to 1920 x 1920 resolution for high-quality images, and an ePTZ function allows you to digitally pan, tilt, and zoom within your field of view. Wide dynamic range enables you to capture detailed images in ambient lighting, and brightness, sharpness, white balance, and backlight compensation features allow you to configure your camera based on different environments.

Motion detection, a recording notification, a system boot, tampering detection, and audio detection will automatically trigger an alarm, and you can also manually trigger an alarm or set the alarm to trigger periodically. Once an alarm is triggered, you will be sent an event notification using HTTP, SMTP, FTP, your NAS server, or your microSD card. Furthermore, the system can automatically upload a file of the event using these same expedients for additional convenience. The camera compresses footage using H.264 and MJPEG formatting, maximizing your bandwidth and storage. Additionally, video can be streamed in three simultaneous streams, and the network can support up to 10 live-viewing users. A microSD slot provides on-site recording, and a built-in microphone offers audio at a range of up to 16.4'. PoE technology allows you to transfer both data and power over the same Ethernet cable, minimizing the amount of cables needed during installation, and the camera is ONVIF-compliant for compatibility with a wide range of surveillance devices.



Specifications

•  CPU: Multimedia SoC (System-on-Chip)
• Flash: 128 MB
•  RAM: 256 MB
• Image Sensor: 1/3.2" Progressive CMOS
• Maximum Resolution: 1920 x 1920 (5 MP)
•  Focal Length: 1.05mm fixed @ f/2.0
• Field of View:
Horizontal: 180°
Vertical: 180°
Diagonal: 180°
•  Shutter: 1/5 to 1/32,000 seconds
• WDR Technology: WDR Enhanced
• Minimum Illumination: 0.6 lux @ f/2.0 (Color)
• ePTZ: 4x digital zoom IE plug-in
• Onboard Storage: micro SD/SDHC/SDXC card slot, Seamless Recording
•  Video Compression: H.264 / MJPEG
• Maximum Frame Rate: 15 fps @ 1920 x 1920
• Maximum Streams: 3 simultaneous streams
• S/N Ratio: 64.4 dB
• Dynamic Range: 69.4 dB
•  Video Streaming: Adjustable resolution, quality, and bitrate Smart Stream
• Image Settings: Adjustable image size, quality, and bit rate, Time stamp, Text overlay, Flip and mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, Smart Stream, 3D DNR
• Audio Capability: 1-way
• Compression: G.711, G.726
• Interface: Built-in microphone
• Effective Range: 16' (5 m)
• Users Live viewing for up to 10 clients
• Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
• Interface 10Base-T/100BaseTX Ethernet (RJ-45)
• ONVIF Supported
•  Video Motion Detection 5-window video motion detection
• Alarm Triggers: Video motion detection, Manual trigger, Periodical trigger, System boot, Recording notification, Camera tampering detection, Audio detection
• Alarm Events: Event notification using HTTP, SMTP, FTP and NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server, and SD card
• OS Compatibility : Microsoft Windows 8 / 7 / Vista / XP / 2000
• Web Browser: Mozilla Firefox 7 to 43 (streaming only) Internet Explorer 7 / 8 / 9 / 10
•  Other Players: VLC: 1.1.11 or above QuickTime: 7 or above
• Connectors: RJ-45 for Network/PoE connection
• Dimensions (Ø x D): 2.4 x 4.5" (60 x 103 mm), Weight: 4.7 oz (133 g)
• Package Weight: 0.65 lb, Box Dimensions (LxWxH): 6.7 x 4.1 x 3.55"
