System Information:
|

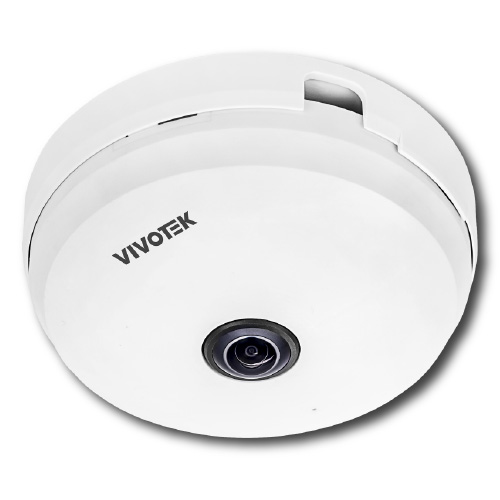

Model: FE9180-H-v2
CPU: Multimedia SoC (System-on-Chip)
Flash: 128 MB
RAM: 256 MB
|
|
| Camera Features: |
Image Sensor: 1/2.7" Progressive CMOS in 2688x1944
Max. Resolution: 1920x1920
Lens Type: Fixed-focal
Focal Length: f = 1.16 mm
Aperture: F2.25
Iris Type: Fixed iris
Field of View: 180° (Horizontal), 180° (Vertical), 180° (Diagonal)
Shutter Time: 1/5 sec. to 1/32,000 sec.
WDR Technology: WDR Pro
Day/Night: Yes
Removable IR-cut Filter: Yes
Minimum Illumination: 0.05 lux @ F2.25 (Color), <0.005 lux @ F2.25 (B/W)
|
|
Pan/Tilt/Zoom Functionalities:
|
ePTZ: 12x digital zoom (12x on IE plug-in)
|
|
Storage:
|
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids: Pixel Calculator
|
|
| Video: |
Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate: 24 fps @ 1920x1920 (WDR on), 30 fps @ 1920x1920 (WDR off)
Maximum Streams: 4 video streams (Up to 9 configurable profiles)
S/N Ratio: 63 dB
Dynamic Range: 120 dB
Video Streaming: Adjustable resolution, quality, and bit rate control, Smart Stream III
|
|
Image Settings:
|
General settings, Image settings, Exposure settings, Privacy mask, Scheduled profile settings, Pixel calculator
|
|
| Display Mode: |
Client dewarping:
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions
Local dewarping:
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions
|
|
| Audio: |
Audio Capability: One-way Audio
Audio Compression: G.711, G.726
Audio Interface: Built-in microphone
Effective Range: 5 meters
|
|
Network:
|
Users: Live viewing for up to 10 clients
Security: Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security
|
|
| Protocols: |
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
|
|
| Interface: |
10 Base-T/100 Base-TX Ethernet (RJ-45)
It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
|
|
ONVIF:
|
Profile G, S, T supported, specification available at www.onvif.org
|
|
| Solution Integration: |
Video Motion Detection: Five-window video motion detection
VADP Package: Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
|
|
| Alarm and Event: |
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action:
Event notification via email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card, Camera Link
|
|
| General: |
Connectors: RJ-45 cable connector for 10/100Mbps PoE network connection
Power Input: IEEE 802.3af PoE Class 2
Power Consumption: Max. 4.6 W
Dimensions: Ø 94 x 35 mm
Weight: 140 g
Certifications:
EMC: CE (EN 55032 Class B, EN55024, EN50121-4), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B)
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
|
|
| Operating Temperature: |
Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
|
|
| Humidity: |
90%
|
|
| Warranty: |
36 months
|
|
| System Requirements: |
Operating System: Microsoft Windows 10/8/7
Mac: 10.12 (Chrome only)
|
|
| Web Browser: |
Chrome 58.0 or above
Internet Explorer 10/11
|
|
| Other Players: |
VLC: 1.1.11 or above
|
|
Included Accessories:
|
Quick installation guide, alignment sticker, screw pack, mounting bracket
|
|
| DORI (EN 62676-4 Standard): |
Detect (25PPM/ 8PPF): 31.4 m (103 ft)
Observe (63PPM/ 19PPF): 12.5 m (41 ft)
Recognize (125PPM/ 38PPF): 6.3 m (20.7 ft)
|
