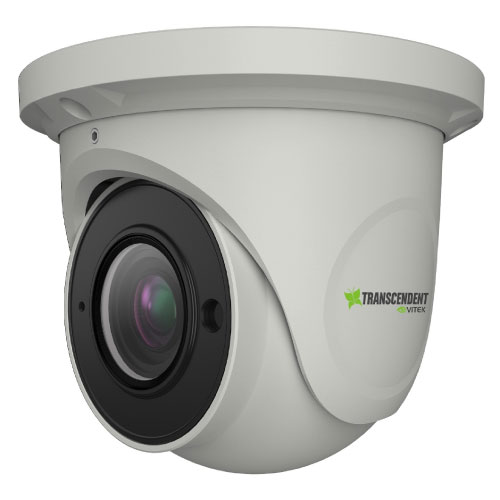

VTC-TNT5RME Transcendent Series 5 MP Indoor/Outdoor WDR IP Turret Camera with 2 Hi Power IR LED Illumination
1/2.7” 5.0 MegaPixel CMOS Image Sensor
Up to 20fps live view @ 5.0 MegaPixel (2592×1944)
2.8~12mm Motorized Varifocal Lens
2 Matrix IRs with up to 165’ IR Range
Built-in Mic*
Digital Wide Dynamic Range (D-WDR)
True Mechanical Day/Night function by ICR
XD-DNR (3D & 2D-DNR) Noise Reduction
On Board Motion Detection, Privacy Masking, and Region of Interest
H.265, H.264 & MJPEG Compression
Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
ONVIF Compliant
IP67 Weather Resistance
Optional Junction Boxes (VT-TJB01, VT-TJB021), Wall Mounts (VT-TWM03, VT-TWMT-4) and Pendant Mounts (VT-TPDM-2 [use w/ VT-TJB01], VT-TPDM-3 [use w/ VT-TJB021])
12VDC & PoE (Power over Ethernet) Operation
|
Image Sensor
|
1/2.7” 5.0 Megapixel Progressive Scan CMOS
|
|
Image Size
|
5 MegaPixel 2592×1944
|
|
Resolution
|
5 MP (2592×1944) / 4 MP (2592×1520) / 3 MP (2304×1296) / 1080P (1920×1080) / 720P (1280×720) / D1/CIF (480×240)
|
|
Min. Illumination
|
0 Lux (IR LED ON)
|
|
Lens Motorized
|
2.8-12mm
|
|
Day/Night
|
True Day/Night by ICR
|
|
IR LEDs
|
2 Matrix IRs
|
|
IR Distance
|
165’
|
|
Video Compression
|
H.265 / H.264 / MJPEG
|
|
Multi-Stream
|
1~20fps: 5MP, 1~30fps: 4MP, 2K, 3MP, 1080P, 720P
|
|
WDR
|
Digital WDR
|
|
DNR
|
XD-DNR (2D-DNR & 3D-DNR)
|
|
Quality
|
VBR (Five Levels of Adjustment) / CBR (Adjustable)
|
|
Image Setting
|
Saturation, Brightness, Contrast, WDR, Noise reduction
|
|
Smart Alarm
|
Motion Alarm
|
|
Region of Interest
|
Up to 3 areas can be configured
|
|
Network
|
RJ45
|
|
Remote Viewing
|
CMS / Web Browser / Mobile (iOS/Android)
|
|
Supported Browsers
|
Internet Explorer, Chrome and Firefox with IE Tab
|
|
Connection Protocol
|
ONVIF
|
|
Weather Resistance
|
IP67 Weather Resistance
|
|
Power Input
|
12VDC / PoE
|
|
Power Consumption
|
(12VDC) 210mA (IR Off) / 500mA (IR On)
|
|
Power Consumption
|
(PoE) <9.5 W
|
|
Working Environment
|
-4~122 / 10%~90% Humidity
|
|
Weight
|
31.04 0z / 1.94 lbs. / 880g
|
|
Dimensions
|
5.13” x 4 .3 3” (13 0.3 m m x 110 mm) Dia x H
|
|
Weather Resistance
|
IP66 Weather Resistance
|
|
Audio
|
Built-in Mic*
|
