System Information
|

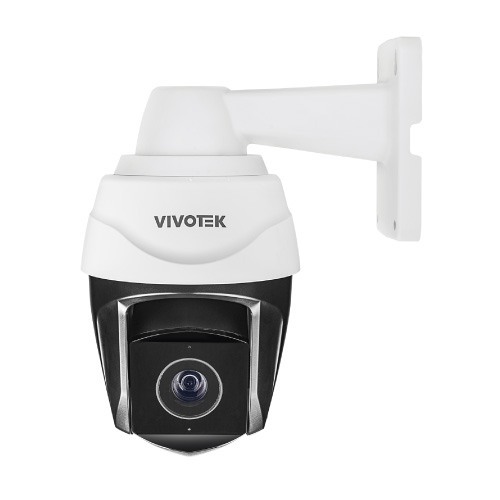

Model SD9384-EHL
CPU Multimedia SoC (Sy stem-on-Chip)
Flash 8 GB
RAM 2 GB
|
|
Camera Features
|
Image Sensor 1/2.8" Progressive CMOS
Max. Resolution 2560x1920 (5MP)
Lens Type 30x Optical Zoom, Auto Focus
Focal Length f = 4.94 ~ 148.24 mm
Aperture F1.3 ~ F4.6
Iris Type DC-iris
Field of View
54.1° ~ 1.9° (Horizontal)
41.2° ~ 1.4° (Vertical)
65.7° ~2.4° (Diagonal)
Shutter Time 1 sec. to 1/100,000 sec.
WDR Technology WDR Pro
Day /Night Yes
Removable IR-cut Filter Yes
IR Illuminators Built-in IR Illuminators up to 200 meters with Smart IR, IR LED*8
Minimum Illumination
0.03 lux @ F1.3 (Color)
0.005 lux @ F1.3 (B/W)
0 lux with IR illumination on
Pan Speed Preset speed: 450°/s
Pan Range 360° endless
Tilt Speed Preset speed: 450°/s
Tilt Range -20° to 90° (auto f lip)
Preset Locations 256 preset locations
Pan/Tilt/Zoom Functionalities
32x digital zoom (4x on IE plug-in, 8x built in)
Auto Pan mode
Auto Patrol mode
Mechanical Auto f lip
Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids Remote focus, remote zoom
|
|
Video
|
Video Compression H.265, H.264, MJPEG
Maximum Frame Rate
30 f ps @ 2560x1920
30 f ps @ 2560x1440
60 f ps @ 1920x1080
Maximum Streams 3 video streams (Up to 8 configurable profiles)
S/N Ratio 74 dB
Dynamic Range 120 dB
Video Streaming Adjustable resolution, quality and constant bitrate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (f lip, mirror),
day /night settings; Illuminators: illuminators, anti-overexposure; Image settings: white
balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curv e),
def og, HLM, 3DNR, EIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control
(exposure lev el, iris adjustment, exposure time, gain control, iris mode), AE speed
adjustment, WDR; Focus; Privacy mask; Scheduled profile settings; Pixel calculator
|
|
Audio
|
Audio Capability Two-way audio (Full duplex)
Audio Compression G.711, G.726
Audio Interface External line input
External line output
|
|
Network
|
Users Liv e viewing f or up to 10 clients
Security
Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, secure boot,
signed firmware, Trend Micro IoT Security (brute force attack event, cyber attack event,
quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP,
IGMPv 3, IPv 4, IPv 6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP,
SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with
the 3P/ETL standard.
ONVIF Profile G, S, T supported, specification available at www.onvif.org
|
|
Solution Integration
|
Video Motion Detection Five-window video motion detection
Smart Tracking Advanced Smart tracking Advanced (Default, license embedded; including intrusion detection, loitering
detection, line crossing detection, f ace detection)
VADP Package Smart Tracking Advanced, Trend Micro IoT Security (3-y ear free trial), Stratocast
|
|
Alarm and Event
|
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack
event, cyber attack event, quarantine event), digital input, manual trigger, motion detection,
periodical trigger, recording notification, SD card life expectancy, smart tracking advanced
trigger, system boot, preset reached
Event Action
Event notification via audio clip, camera link, digital output, email, HTTP, FTP, NAS server,
SD card
File upload via email, HTTP, FTP, NAS server, SD card; trigger track, trigger patrol, move
to preset
|
|
General
|
Connectors
RJ-45 cable connector f or 10/100 Mbps PoE network connection
Audio line input
Audio line output
DC 48V power input
AC 24V power input
Digital input*2
Digital output*1
LED Indicator System power and status indicator
Power Input AC 24V, DC 48V, IEEE 802.3 bt Class 6 PoE
(Simultaneous Power Redundancy Supported)
Power Consumption
PoE:
Max. 51W/26W (IR on/of f )
DC 48V:
Max. 51W/26W (IR on/of f )
AC 24V:
Max. 51W/26W (IR on/of f )
Dimensions 256 x 336 mm
Weight 7.1 kg
Certifications
EMC: CE (EN 55032 Class A, EN55035, EN50121-4), UKCA (BS EN 55032: 2015 +A11: 2020
, BS EN 55035: 2017), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003:2020 Issue7,
Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety :
UKCA (BS EN 62368-1:2014+A11:2017), UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN
60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA
250 Type 4X); IA: BIS (IS 13252), BSMI
Operating Temperature
Starting Temperature:
-40°C ~ 55°C (-40°F ~ 131°F)
Working Temperature:
-40°C ~ 60°C (-40°F ~ 140°F) (IR on)
Humidity 98% RH (non-condensing)
Warranty 36 months
|
|
System Requirements
|
Operating System Microsoft t Windows 10/8/7
Mac 10.12 (Chrome only )
Web Browser Chrome 58.0 or above
Internet Explorer 10/11
Other Players VLC: 1.1.11 or above
|
|
Included Accessories
|
Packing Contents Wall mount bracket, Quick installation guide, alignment sticker, screw pack, desiccant bag,
waterproof accessory bag, conduit ring, terminal block
|
